Chapter 14: Information Browsers

Information Browsers display detailed information and allow in depth analysis about analyzed source code.

14.1 Accessing Browsers

An Information Browser can be opened by:

14.2 Common Functionality

Below is an example of a common Information Browser:

All information browsers make use of an information window. Information windows allow dynamic expansion and contraction of displayed data which is customized to the particular browser in use. With this type of control the user can directly access specifics without being bogged down with details. If the browser has an Options dialog, invoked with , displayed information can be adjusted to show minimal or maximum detail.

Default options can be modified on the Utilities/Options/Browser menu.

14.3 Matching

Information browsers perform high level searches when a regular expression is entered into the Match edit box. Most information browsers accept wildcards (*) in the Match edit box.

For example, to display information on all variables with the string "date" in their name, open the Variables Information Browser and type *date* in the Match edit box and press the Match button. A list of variables matching the selected criteria will be displayed.

The or bar, (|) may be used to enter multiple matching patterns for one query. For example, "*month*|*year*" would return all items which have either "month" or "year" in their name.

Note: The functionality described above differs in the Text Information Browser in that any characters entered into the Match edit field will be matched as text strings. For example, if the wildcard character (*) or the or bar (|) are used, Revolve will search source code files for text containing "*" or "|".

14.4 Browsers Menu

The Browsers Menu provides access to each of the information browser. When an information browser is opened via the Browsers menu, a match criteria must be entered into the Match edit box before any information is displayed in the information window.

Note: Certain Browsers can also be invoked via the right-click speed menu. Right-click on a highlighted item in a Tool or Information Browser and select Information from the speed menu. An appropriate browser will appear displaying information corresponding to the highlighted item.

14.5 Browser Options

Some information browsers have their own options dialogs, invoked by their Options buttons , which allow the user to customize searches and control the information that is displayed in the information window.

14.6 Subprojects

A subproject is a collection of individually specified items that are taken from a Revolve project to be analyzed and modified in specific ways. The information displayed in the information browsers can be limited to subprojects. The Assign Scope... button opens the Choose dialog. Select the subproject that contains the information you want to use in the browser and press the OK button. The appropriate information will be displayed in the browser.

See also For information on creating and using subprojects refer to Subprojects in Using Revolve.

14.7 Modification Driver

The Modification Driver button appears on all browser button bars. It invokes the Modification Driver dialog which allows user-defined text to be automatically entered into the source code of selected items. This functionality is especially useful for the implementation of source code changes.

See also For details on the functionality of the Modification Driver refer to Using Revolve.

14.8 Browser Operation Sequence

All Revolve information browsers operate similarly. The following sequence is the basis for proper operation.

  1. From the Browser main menu, select the browser which you need to employ in your analysis.
  2. Select a type in the pull-down list box if the current browser requires type specification.
  3. Enter a string into the Match edit box that represents the particular element for which you are looking.

The Match edit box opens initially with a wildcard(*) character. This allows you the opportunity to view all elements pertaining to the information browser in your project. For example, if you press the Match button while the wildcard is displayed in the Screens edit field, then you will be presented with information on all the screens in your project.

  1. Press the Match button to perform the lookup. The information window fills with a list that matched the specified name.
  2. Information is displayed in an expandable list format. Double-clicking and the buttons on the button bar expand and collapse lines.
  3. Subsequent searches can be done by starting at step 2.

Note: If the browser you are using contains an Options button you should consider adjusting your options before completion of step 2.

14.9 CICS Information Browser

The CICS Information Browser displays information about CICS datasets, programs, and transactions used in the source code. By accessing the CICS Information Browser you can view programs that access the entities and the actual calls that perform the access (CICS reads/writes, xctl's, etc.). By selecting all items in the information window and clicking the Expand One Level button you can quickly get a cross-reference report showing which programs access different datasets, programs, and transactions. The aliased name is given in parentheses.

14.10 Copybooks and Includes Information Browser

The Copybooks and Includes Information Browser displays information about copybooks and includes in the source code. Each line displays the number of usages and the physical path of the import. Once expanded, you can see the components that use the import and the individual usages. By selecting displayed items and clicking the Expand One Level button , you have a complete import cross-reference report for your entire system.

14.11 Data Files Information Browser

The Data File Information Browser displays information about files used by programs in the project. This browser lets you quickly see where a file is accessed across an entire project. It displays the on-line programs, batch programs, and JCL's which access the file. And if you need more detail the browser will go directly to the program statements or JCL DD's where the files are accessed. The Data Files Information Browser will also display what buffers and copybooks are being used with each file, by using the Associated Variables option in the File Information Options dialog, accessible via the Options button .

14.11.1 Screening

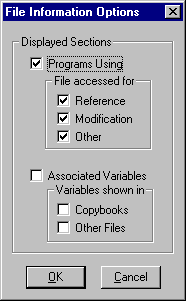

The Data File Information Browser provides you with the ability to adjust the information that is displayed in the information window. The File Information Options dialog is invoked when the Options button is selected.

Consistent with other Revolve windows, the options dialog gives you complete control over the displayed information.

14.12 Fields Information Browser

The Fields Information Browser displays information about fields used by screens or programs in the project. You can access information about the screens which contain the fields, the programs using the fields, the line number, and field type.

14.13 IMS Information Browser

The IMS Information Browser displays information about IMS entities used in the source code. By using this browser, you can cross-reference IMS Datasets, IMS PSB's, and IMS Transactions.

14.14 JCL Jobs Information Browser

The JCL Jobs Information Browser displays information about JCL jobs. With this browser, you can quickly see which programs are called by the JCL job and which data files are accessed. This browser will also display schedules and subprojects that contain jobs. If the Unisys Extension™ is installed this browser will display ECL called programs and data files.

14.15 Literals Information Browser

The Literals Information Browser displays information about literals used in the source code. With the Literals Information Browser you can access the number of occurrences of the specified literal, the name of the files containing the literal, line numbers of the literal within the file, and the entire line of text containing the literal.

14.16 Paragraphs and Sections Information Browser

The Paragraphs and Sections Information Browser displays information about labels in the source code. With the Paragraphs and Sections Information Browser you have access to the name of the file(s) containing the paragraph or section, the line number of the label, the calls to the label, and the calls made within the label.

14.17 Procs and Control Cards Information Browser

The Procs and Control Cards Information Browser displays information about JCL procs and control cards. You have access to information about the physical file containing the proc, the number of usages of the proc and control cards by JCL components, and the names of the JCL components that use the procs and control cards.

14.18 Programs Information Browser

The Programs Information Browser displays detailed information about programs/load modules. You can view which copybooks and data files are used by a program/load module, as well as the usages of the program/load module in other components. Program accessed screens and line numbers are also given.

14.18.1 Screening

You can screen the information that is displayed in the information window by making specifications in the Program Information Options dialog box. Select the Options button to display the dialog.

By default, the Programs Information Browser will display all the information listed in the Options dialog. Any of these categories can be turned on or off in the options box.

14.19 Screens Information Browser

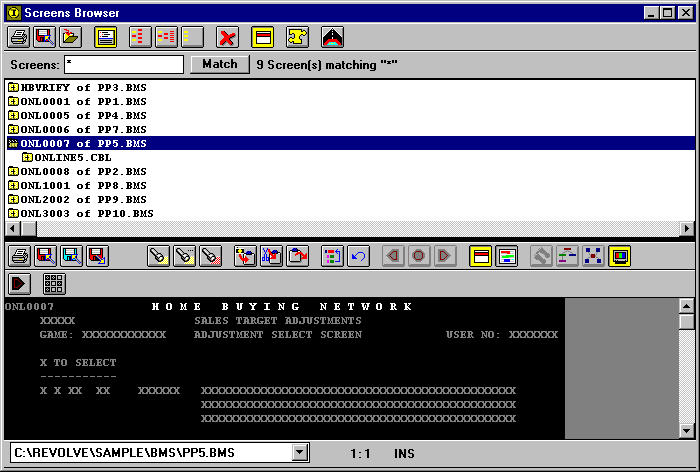

The Screens Information Browser displays information about the screens used by the programs in your project. With the Screens Information Browser, you can access information about the file which contains a screen definition, programs that use the screen, the line number, and type of each screen access.

14.20 SQL Information Browser

With the SQL Information Browser you have access to comprehensive information about database tables and columns that are used in the source code. The information window will display the line numbers and types of each reference, as well as the programs that reference the tables and columns.

14.21 Statements Information Browser

Use the Statements Information Browser to view statements and their locations in the source code, including the names of the programs that contain the statements and the line numbers of each usage. Unlike other browsers, programs, not statements, are the top level items. When you enter an item in the Match edit field it must be the particular program where a statement is located as opposed to the statement itself.

14.21.1 Screening

By default, the Statement Options dialog will be displayed when you invoke the Statements Information Browser from the Browser menu. It can also be displayed via the Options button .

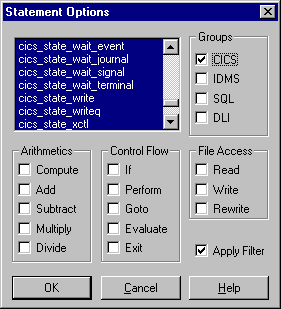

The Statement Options dialog contains a listbox of all statement types which can be found. Statements can be selected individually or by selecting the categories: Groups, Arithmetics, Control Flow, and File Access. If specifications are not made, an information list will not be collected. Consistent with other Revolve features, the Options dialog gives you complete control over the information that is displayed in the information window.

14.22 Text Information Browser

The Text Information Browser allows you to find specific text strings in your project. Each line of text which is found is accompanied with comprehensive information that makes access to the source code and file that contains it quick and easy.

Note: Any characters entered into the Text field will be included in the text search. Asterisks(*) and Or bars (|) are considered actual text elements instead of wildcard characters.

14.22.1 Case Sensitivity

When clicked, the Case Insensitive button indicates that the text search will retrieve matches regardless of case.

14.22.2 Program Mode vs. File Mode

The Text Information Browser can be used in two different modes: Program Mode and File Mode. Program Mode

In Program Mode, activated with the Search all project files button , you enter:

The search is performed on loaded project files which match the specified type. Related files include COBOL programs, JCL, BMS, etc., as well as any copybooks or JCL procs.

For example, to find all occurrences of the string "date" in all files in the currently loaded project, use Program Mode, as opposed to File Mode, which searches files not necessarily defined or loaded in the project. File Mode

In File Mode, activated with the Specify search files button , you enter:

Revolve searches through the file(s), finding any lines which contain text matching the given string. This is useful to search for text strings outside of the Revolve project.

Note: Revolve assumes that File Mode is being used to search for text strings outside of the loaded project, so Revolve features will not apply to File Mode matches (i.e. speed menu, annotations, tools, etc.).

14.23 Variables Information Browser

The Variables Information Browser displays comprehensive information about the variables and conditionals used in your application. You can access a variable's line number, as well as the file names that modify, reference, or redefine it. Also, the usage of a variable across a project can be viewed from this browser.

Note: The Variables Information Browser can display up to 32,767 variables. If the number of variables in your project exceeds 32,000 and you use the asterisk (*) wildcard character to identify all variables, then Revolve will display an error message. This can be avoided by using pattern matching to identify variables in large capacity projects.

14.23.1 Program Mode vs. File Mode

In Program Mode (default mode) all data usage is categorized by logical programs. A logical program includes not only the contents of the COBOL file but also the contents of all copybooks and includes which are found during the load. Therefore, if a variable is declared or used in a copybook that is used by many COBOL programs, then each program using that copybook will be listed in the information window when the variable is expanded.

File Mode groups the usages by physical file. Copybooks which include usages or definitions of a variable are only listed once in the information window. COBOL programs must have a usage or definition outside of copybook or include for the program to appear in the information window when a variable is expanded.

14.23.2 Screening

The Variables browser can be adjusted to screen and filter the information that is displayed. Consistent with other Revolve windows, the Options button can be pressed to invoke an options dialog with which the user can have complete control over the information that is displayed in the Variables information window.

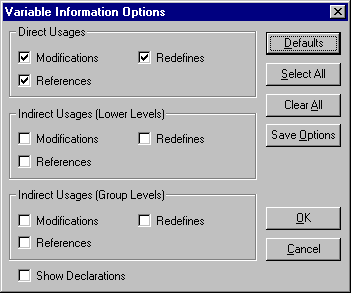

All direct redefines, direct references, and direct modifications of the specified variable will be set by default in the Variable Information Options dialog. In addition to the default criteria you can modify the specifications to include information about other variables that are related to the specified variable. You have the following options:
