Access Manager Business to Consumer Access Management

Traditional access management solutions are limited to control and manage employees’ access within an organization. Organizations now provide more online services, thus the online presence of external stakeholders (consumers and partners) is growing. Organizations require to manage stakeholders efficiently. Organizations face many challenges in managing identities of consumers and partners and their access to services.

The following are some areas where most of the organizations face challenges:

  • Ensuring a secure access because a username and password combination or traditional password based security has numerous vulnerabilities.

  • Authenticating consumers based on federated protocols due to increase in the number of cloud-based services and Software-as-a-Service (SaaS) delivery models.

  • Authenticating consumers based on their social media credentials.

  • Providing seamless experiences across devices.

  • Managing consumers’ details.

  • Providing protection and privacy to consumers’ identity and personal information.

To overcome these challenges, Access Manager provides the following business to consumer (B2C) access management capabilities:

User-driven functionalities: Enables users to perform self-registration and manage their devices and applications without administrative intervention.

Better user experience: To provide a seamless access to applications from anywhere and from any device.

Intelligent and secure authentication mechanism: To provide a secure access to users by using methods such as risk-based authentication, identity proofing-email verification, device fingerprinting, and multi-factor authentication.

Social authentication: To grant access based on users’ social media identity to reduce their overhead of managing multiple accounts, and for just-in-time provisioning.

APIs: To enable better integration with applications. These APIs enable programmatic interfaces to access administration and user data.

Data privacy: To ensure privacy of users’ data by asking their consent and enabling them to select the information they want to share.

End user data control: To enable users to view, manage, and delete their applications and devices. It also enables users to manage their profile.

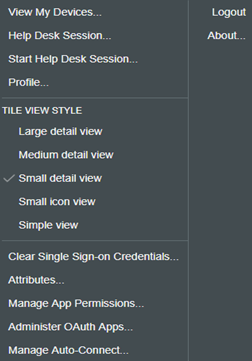

Access Manager User Portal is enhanced to support B2C access management capabilities. To provide B2C access management capabilities, Access Manager integrates with the following products:

  • NetIQ Self Service Password Reset 4.2 or later: To enable customers and partners perform self-registration and to provide end user data control, such as change password and modify profile details.

  • NetIQ Advanced Authentication 5.6 Patch 1 or later:To use the multi-factor authentication capability when a user tries to log in from an untrusted device.

The following diagram illustrates a common set of B2C access management capabilities of Access Manager:

1.0 An Example Scenario

Let us assume Acme Inc. is a life insurance provider that provides individual and group insurance products to its customers. It has nationwide agents that sell and service insurance products. It also sells insurance products through the online portal. It uses SaaS services such as ServiceNow, Salesforce, DocuSign, and LexisNexis to provide services to its consumers and agents.

Acme Inc. serves the following two types of online users:

  • Consumer: A person who buys the insurance products. In this example, Carol is a consumer.

  • Insurance Agent: A person who sells products of Acme Inc along with the products from other companies. An agent needs elevated privileges. In this example, Aaron is an agent. He needs privileges to access the information about commission details, view new products, view clients’ insurance information, and access to additional services such as a service ticket in ServiceNow.

The Access Manager B2C portal caters to the following requirements of Aaron and Carol in this scenario:

Registration through any of the following ways:

  • As a new user using the registration page

  • As an agent

  • Using social accounts

Agent Activation through the following way:

  • Using B2C customer center to create an agent’s username

  • A verification code is sent to the agent’s email ID

  • The agent sets a password using username and verification code

Login through any of the following ways:

  • Using the default login page

  • Using social accounts

  • Through a federated account

  • Using an Advanced Authentication mechanism

Account Management to perform the following actions:

  • View and delete applications

  • View and edit profile details, such as name and phone number and preferences

  • View and manage devices

  • Manage passwords

Privacy and Consent Management to perform the following actions:

  • Decide what information they want to share

  • Manage privacy and consents

  • Delete an account and erase all personal information

For information about how to configure B2C access management for this scenario, see Business To Consumer Wizard: Sample Configuration.

2.0 Strategy for Deploying B2C

Access Manager B2C deployment consists of the following modules:

Self Service Password Reset: Enables consumers and partners perform self-registration, self-registration using social login information, account management (passwords, profile), and account deletion.

Advanced Authentication: Enables multi-factor authentication when a user tries to log in from an untrusted device.

B2C User Portal:This is the fully customized user portal.

Access Manager Access Gateway: Ties together the various components and provides a unified domain to the end user.

Access Manager Identity Server: Evaluates login risks and alters the level of authentication. Integrates with Advanced Authentication to provide a variety of authentication mechanisms

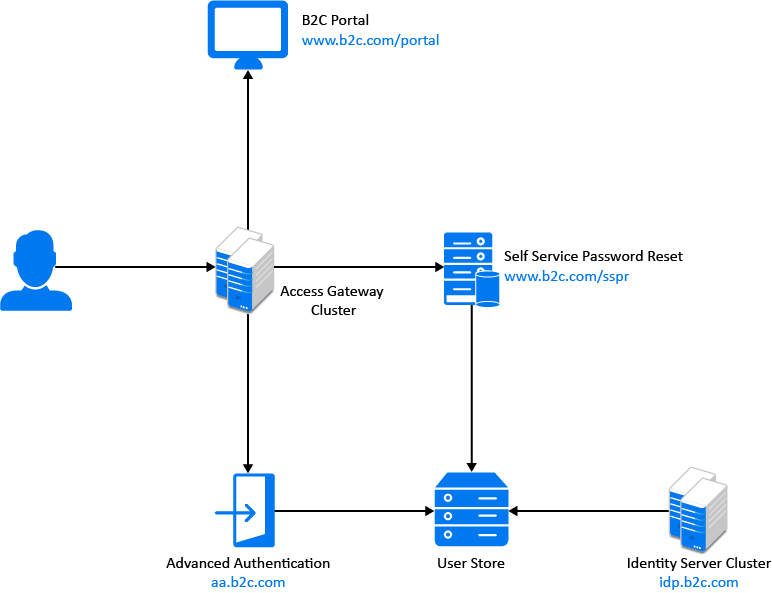

The following diagram illustrates how Self Service Password Reset and Advanced Authentication are integrated with Access Manager Appliance:

Deployment Workflow for B2C

You can use the following base URLs to deploy a standard B2C access management environment:

  • B2C login URL: https://www.b2c.com/portal

  • User portal URL: https://idp.b2c.com:8443/nidp/portal

  • Access Gateway hosting Self Service Password Reset URL: https://www.b2c.com/sspr/

  • Access Gateway hosting Advanced Authentication URL: https://aa.b2c.com/account/basic

IMPORTANT:Access Manager, Self Service Password Reset, and Advanced Authentication must use the same LDAP user store.

Task

Reference

  1. Set up the B2C login page.

Setting Up the B2C Login Page

  1. Configure Self Service Password Reset and Advanced Authentication servers.

Configuring Self Service Password Reset and Advanced Authentication

  1. Configure services for portal login page, Self Service Password Reset, and Advanced Authentication in Access Gateway.

Configuring Services for Login Page, Self Service Password Reset, and Advanced Authentication in Access Gateway

  1. Enable Self Service Password Reset and Advanced Authentication Servers integration in Identity Server.

    Specify Advanced Authentication server details in Identity Server when you want to use authentication methods from Advanced Authentication.

Enabling Self Service Password Reset and Advanced Authentication Integration in Access Manager

  1. Configure social authentication contracts.

Configuring Social Authentication Contracts

  1. Configure device registration contract using an Advanced Authentication method for step-up authentication.

Configuring a Device Registration Contract

  1. Configure to send email notifications when a user logs in using an unknown device. You can configure this option if you configure a device registration contract.

Configuring Email Server

3.0 Setting Up the B2C Login Page

When you integrate Access Manager with Self Service Password Reset, it automatically enables the Register and Forgot Password links on the login page. However, you can configure the login page based on your requirements. You can choose the options and actions that are available for users on the login page.

Perform the following steps to set up the B2C login page:

  1. Download b2cFramework-1.0.zip from the /opt/novell/nids/lib/webapp/css/ folder of Access Manager Identity Server.

    For information about how to download this file, see Downloading Files from a Server inthe NetIQ Access Manager Appliance 5.0 Administration Guide.

  2. Unzip the file and locate login_snippet.jsp and b2c_nam_login.jsp. Add these files to the /opt/novell/nids/lib/webapp/jsp/ folder of Access Manager Identity Server.

  3. Locate login_snippet.css and add this file to the /opt/novell/nids/lib/webapp/css/ folder of Access Manager Identity Server.

  4. Locate example.html and example.css and rename these to index.html and index.css respectively.

  5. Open index.html and perform the following steps:

    For information about how to open and modify a file, see Modifying Configuration Files in the NetIQ Access Manager Appliance 5.0 Administration Guide.

    1. Search for <link rel="stylesheet" href="example.css"> and replace example.css with index.css.

    2. Search for <script src="../login_snippet.js"></script> and replace /login_snippet.js with https://idp.b2c.com:8443/nidp/jsp/login_snippet.jsp.

    3. Search for apiHost: and replace https://prvqenam660.namdom049.lab:8443/ with https://idp.b2c.com:8443/.

    4. (Optional) In the login_snippet.jsp file, configure parameter loginUrl with the new login URL. For example, loginUrl: 'https://idp.b2c.com:8443/nidp/app/b2c_login'.

      IMPORTANT:This step is required only if the default authentication contract has two or more authentication methods configured. For example, if the default contract is a risk-based contract and it is configured to prompt for an additional authentication based on the risk, then configure this step.

  6. Host the following files on a web server or a Tomcat web application container:

    • index.html

    • index.css

    To host these files, create a folder named portal in the root folder of the web server or in the tomcat container and copy these files to this folder.

  7. Open Identity Server’s web.xml.

    For information about how to open and modify a file, see Modifying Configuration Files in the NetIQ Access Manager Appliance 5.0 Administration Guide.

  8. In web.xml, enable the CORS filter by uncommenting the following filter configuration:

    <filter>
                    <filter-name>CorsFilterController</filter-name>
                    <filter-class>com.novell.nidp.servlets.filters.CorsFilterController</filter-class>
            </filter>
            <filter-mapping>
                    <filter-name>CorsFilterController</filter-name>
                    <url-pattern>*</url-pattern>
            </filter-mapping>
            <filter>
                    <filter-name>CorsFilter</filter-name>
                    <filter-class>org.apache.catalina.filters.CorsFilter</filter-class>
                    <init-param>
                            <param-name>cors.allowed.origins</param-name>
                            <param-value>*</param-value>
                    </init-param>
                    <init-param>
                            <param-name>cors.allowed.methods</param-name>
                            <param-value>GET,POST,HEAD,OPTIONS,PUT</param-value>
                    </init-param>
                    <init-param>
                              <param-name>cors.allowed.headers</param-name>
                   <param-value>Content-Type,X-Requested-With,accept,Origin,Access-Control-Request-Method,Access-Control-Request-Headers</param-value>
                    </init-param>
                    <init-param>
                            <param-name>cors.exposed.headers</param-name>
                            <param-value>Access-Control-Allow-Origin,Access-Control-Allow-Credentials</param-value>
                    </init-param>
            </filter>
            <filter-mapping>
                    <filter-name>CorsFilter</filter-name>
                    <url-pattern>*</url-pattern>
            </filter-mapping>
  9. Add the following snippet:

    <servlet>
     <servlet-name>B2CLoginServlet
     </servlet-name>
      <display-name>B2C Login Servlet
      </display-name>
      <jsp-file>/jsp/b2c_nam_login.jsp
      </jsp-file>
    </servlet>
    <servlet-mapping>
      <servlet-name>B2CLoginServlet
      </servlet-name>
      <url-pattern>/app/b2c_login
      </url-pattern>
    </servlet-mapping>
  10. Add b2c_nam_login.jsp to the list of JSP in the param-value of the name>nidpJspFilter filter.

  11. Restart Identity Server.

  12. Ensure that you can access the B2C login page at http(s)://<web server IP address where index.html is hosted>/portal/index.html and the page contains a login form.

For more customization options, locate Login Snippet.pdf in the files extracted from b2cFramework-1.0.zip. Open it to find further steps to customize the B2C login page.

4.0 Configuring Self Service Password Reset and Advanced Authentication

4.1 Configuring Self Service Password Reset for B2C

In the B2C access management deployment, the following requirements are achieved using Self Service Password Reset:

  • User account creation during self-registration

  • User account creation during social registration

  • User account activation for the agent registration

  • Password recovery for user accounts

  • Profile update for user accounts

  • Account deletion

  • Change password

Perform the following tasks in Self Service Password Reset to achieve these requirements:

  1. Log in to Self Service Password Reset as an administrator.

  2. In the toolbar, click your username and select Configuration Editor.

  3. Create a general profile for self-registration.

    For more information, see Enabling Self-Registration.

  4. Create a social profile for social registration.

    Form more information, see Enabling Self-Registration Using Social Login Information.

  5. Enable and edit the User Activation profile for agent registration.

    Form more information, see Configuring the User Activation Profile Module.

  6. Enable and edit the Forgotten Password profile to enable the users to reset password and login again.

    For more information, see Configuring the Update Profile Module.

  7. Enable and edit the Update Profile profile to enable the users to update their profiles.

    For more information, see Configuring the Update Profile Module.

  8. Edit the Delete Account profile to enable users to delete their profile.

    Fore more information, see Enabling User Deleting Capabilities.

  9. Enable the Change Password profile to enable users to change their passwords. This is the default profile for change password. You can edit this profile to change the default behavior.

    For more information, see Configuring the Change Password Module.

  10. Click Modules > Public > New User Registration > New User Settings and select Enabled.

  11. Click Security > Web Security and specify the following URLs in Redirect Whitelist:

    • https://www.b2c.com

    • https://idp.b2c.com:8443/nidp

  12. You can define various URLs in Self Service Password Reset configuration to redirect the user to a logical page after the completion of each task.

    To define these URLs, click Settings > Application > Application, and set up the following URLs:

    • Set up a Site URL. For example, https://www.b2c.com/sspr

    • Set up a Forward URL. For example, https://www.b2c.com/portal/index.html

    • Set up a Logout URL. For example, https://www.b2c.com/AGLogout

    • Set up a Home URL. For example, https://idp.b2c.com:8443/nidp/portal

Enabling Self-Registration

To enable user self-registration, you must create a profile in Self Service Password Reset.

Perform the following steps to create a profile:

  1. Create a new New User Profile profile using a unique profile name. For example, General.

  2. Click Modules > Public > New User Profile > General.

  3. Edit Creation Context in the General profile to match the context in the LDAP directory where users are created. For example, ou=users,o=novell.

  4. Edit the form based on the information that you require from users.

    A standard form contains the following fields:

    Name

    Label

    cn

    User Name

    givenName

    First Name

    sn

    Last Name

    mail

    Email

    mobile

    Mobile

    NOTE:If your LDAP store is Active Directory, cn will be sAMAccountName.

  5. Delete the default definition in LDAP Entry ID Definition if cn is part of the user configured in the previous step.

  6. (Optional) You can select Enable New User Email Verification and Enable New User SMS Verification based on your verification requirement.

  7. Set up After Registration Redirect URL for the New User Registration general profile. For example, https://www.b2c.com/portal.

  8. If the Self Service Password Reset configuration for forgotten password is challenge/response then After Registration Redirect URL is the Access Gateway URL. For example, https://www.b2c.com/sspr/private/setup-responses.

  9. Select Prompt User for Password to prompt the user to provide a password during registration.

  10. Now, users can register themselves using the /sspr/public/newuser/profile/General URL.

For more information about how to configure profiles in Self Service Password Reset, see Configuring Profiles in the Self Service Password Reset 4.2 Administration Guide.

Enabling Self-Registration Using Social Login Information

Perform the following steps to configure Self Service Password Reset to enable user registration using social networking accounts:

  1. Create a new New User Profile profile using a unique profile name. For example, Social.

  2. Edit Creation Context in the social profile to match the context in the LDAP directory where users are created.

    For example, ou=users,o=novell.

  3. Edit the form based on the information required from users. A standard form contains the following fields:

    Name

    Label

    cn

    User Name

    displayName

    Full Name

    sn

    Last Name

    mail

    Email

    carLicense

    Unique ID

    NOTE:If your LDAP store is Active Directory, then cn will be sAMAccountName.

  4. Delete the default definition in LDAP Entry ID Definition if cn is part of the form configured in Step 3.

  5. (Optional) You can select Enable New User Email Verification and/or Enable New User SMS Verification based on your verification requirement.

  6. Deselect Prompt User for Password to ensure that the user is not prompted for password.

  7. Click Settings > Web Services > REST Services.

    Perform the following steps in REST Services:

    1. Select Enable External Web Services.

    2. Click on Add Value in External Web Services Secret.

    3. Specify a name for the new password. For example, NAMSECRET.

    4. Specify a password and click Store Password. For example, pass@123.

      IMPORTANT:This name and password is used when you configure Access Manager to integrate with Self Service Password Reset. Specify name in API Username and password in API Password while specifying the Self Service Password server details in Identity Server.

      See Configuring Self Service Password Reset Server Details in Identity Server.

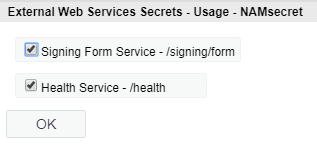

    5. Click Usage and select Signing Form Service - /signing/form and Health Service - /health.

    6. Click OK.

    7. Log in to Access Manager as an administrator. Navigate to Identity Server > Shared Settings > Self Service Password Reset > Integration Links. Specify a path for profile in Auto Registration URL. For example, /public/newuser/profile/Social.

  8. Now, users can register themselves using the /sspr/public/newuser/profile/Social URL.

For more information about how to register social users using Self Service Password Reset, see Creating Accounts for Social Users in Self Service Password Reset Using the New User Registration Module in the Self Service Password Reset 4.2 Administration Guide.

Enabling User Deleting Capabilities

Configure the Delete Account module in Self Service Password Reset. This enables users to delete their account information stored in Access Manager. When users delete their own accounts from the B2C portal, the requests are sent through REST API to Access Manager. This configuration is required when you want to delete the complete user history and device registration is configured in the Access Manager contract.

For information about how to enable user delete capabilities, see Deleting User Accounts in Access Manager from the Delete Account Module in the Self Service Password Reset 4.2 Administration Guide.

Ensure that you perform the following additional steps:

  • Enable the Delete LDAP Entry option.

  • To logout the user from Access manager after deletion of the user, set up Next URL for Delete Account. For example, https://www.b2c.com/AGLogout.

4.2 Configuring Advanced Authentication for B2C

IMPORTANT:You must configure the Advanced Authentication server before creating an Advanced Authentication class in Access Manager. See Configuring Advanced Authentication Server in the NetIQ Access Manager Appliance 5.0 Administration Guide.

To configure Advanced Authentication, perform the following steps:

  1. Log in to Advanced Authentication Administrative Portal.

  2. Create an advanced authentication method in Advanced Authentication Server.

    For example, select the security question method. See Configuring Authentication Methods in the NetIQ Access Manager Appliance 5.0 Administration Guide.

  3. Create a chain named b2c. Assign the security question method created in previous step to the b2c chain. Ensure that all users are assigned to this chain. Assign the b2c chain to the default Access Manager event created in Advanced Authentication.

    For more information about how to create and assign a chain, see Creating a Chain.

  4. Assign the b2c chain to the default Access Manager event by moving the b2c chain from Available to Used.

  5. Add the Access Manager Identity Server endpoint to the Access Manager event so that the Identity Server endpoint is white listed for the Access Manager event. You can perform this step only when the Advanced Authentication server details are specified in Identity Server.

    For more information about configuring Advanced Authentication, see Multi-Factor Authentication Using Advanced Authentication.

5.0 Configuring Services for Login Page, Self Service Password Reset, and Advanced Authentication in Access Gateway

Login Page, Self Service Password Reset, and Advanced Authentication are configured as protected resources in Access Gateway to enable SSO.

5.1 Configuring the B2C Login Page as a Service in Access Gateway

  1. Create a reverse proxy named b2cproxy in Access Gateway. Specify a Secure Port. For example, 443. Assign a wild card certificate as Server Certificate.

    For information about how to create a reverse proxy, see Managing Reverse Proxies and Authentication in the NetIQ Access Manager Appliance 5.0 Administration Guide.

    NOTE:You can specify any value in Secure Port, but you must configure the B2C access management deployment URLs in Access Gateway accordingly.

  2. Create a proxy service named b2cproxyservice and provide the published DNS name as www.b2c.com.

    For information about how to create and configure a proxy service, see Creating a Proxy Service and Configuring a Proxy Service in the NetIQ Access Manager Appliance 5.0 Administration Guide.

  3. Specify the IP address of the server that is hosting index.html.

    For information about index.html, see Setting Up the B2C Login Page.

  4. Create a protected resource to the proxy service created in Step 2 and specify /* in URL Path while creating the protected resource.

    Do not assign a contract to this protected resource. This enables users with self-registration and password reset capabilities.

    For information about how to create a protected resource, see Setting Up a Protected Resource in the NetIQ Access Manager Appliance 5.0 Administration Guide.

    Now, you can access the login page as https://www.b2c.com/portal.

5.2 Configuring SSO to Self Service Password Reset Through Access Gateway

  1. Create a path based multi-homing proxy service for the reverse proxy b2cproxy created in Step 1. Specify /sspr in Path while creating the proxy service.

    For information about how to create and configure a proxy service, see Creating a Proxy Service and Configuring a Proxy Service in the NetIQ Access Manager Appliance 5.0 Administration Guide.

  2. Create a protected resource for the proxy service created in the Step 1. Specify /sspr/* in URL Path while creating the protected resource.

    Do not assign a contract to this protected resource. This enables users with self-registration and password reset capabilities.

    For information about how to create a protected resource, see Setting Up a Protected Resource in the NetIQ Access Manager Appliance 5.0 Administration Guide.

  3. Create another protected resource for the proxy service created in Step 1. Specify /sspr/private/* in URL Path while creating the protected resource. Assign the Secure Name/Password - Form contract to this protected resource so that only authenticated users can access this protected resource. Ensure that Satisfiable by Contracts of Equal or higher level is enabled for the Secure Name/Password - Form Contract.

    For information about how to create a protected resource, see Setting Up a Protected Resource in the NetIQ Access Manager Appliance 5.0 Administration Guide.

  4. Create an identity injection policy and assign it to the protected resource created in Step 3. Choose Inject into Authentication Header in Action while creating the identity injection policy.

    For more information about how to create and assign an identity injection policy, see Identity Injection Policies and Assigning an Authorization Policy to a Protected Resource in the NetIQ Access Manager Appliance 5.0 Administration Guide.

    Perform the following steps when you configure the authentication header policy:

    1. In User Name, select Credential Profile and select LDAP User Name (the cn attribute of the user) in LDAP Credentials.

      For more information about how to configure the authentication header policy, see Configuring an Authentication Header Policy in the NetIQ Access Manager Appliance 5.0 Administration Guide.

    2. In Password, select Credential Profile and select LDAP Password in LDAP Credentials.

      For more information about how to configure the authentication header policy, see Configuring an Authentication Header Policy in the NetIQ Access Manager Appliance 5.0 Administration Guide.

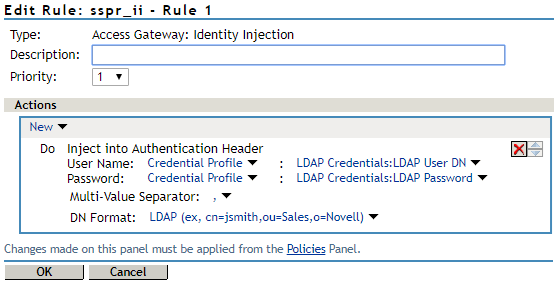

      The following diagram shows how the identity injection policy appears in Access Gateway:

      Now, users can access the following URL using Self Service Password Reset:

      • Authenticated Users: https://www.b2c.com/sspr/private

      • Public Users: https://www.b2c.com/sspr/public/newuser/profile/General

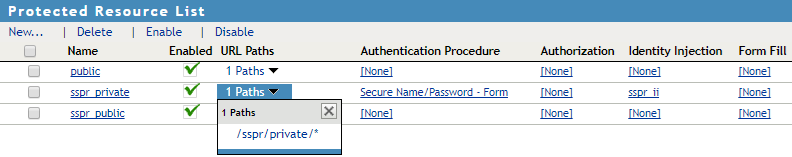

    The following diagram shows how the protected resources appear in Access Gateway after configuration:

5.3 Configuring SSO to Advanced Authentication Through Access Gateway

To configure SSO to the Advanced Authentication enrollment page, you must configure several settings in Access Gateway and in Advanced Authentication.

Advanced Authentication must be enabled for basic authentication to achieve SSO using Access Gateway. Advanced Authentication processes only the HTTP Authorization header for incoming requests that include /basic in the path, for example: https://aa.b2c.com/account/basic. To enable basic authentication, perform the following steps:

Configuring Advanced Authentication

  1. Log in to Advanced Authentication Administration Console and ensure that an Authentication chain exists with the LDAP Password method.

  2. Edit the Authentication chain mentioned in Step 1 to assign the chain to all users.

  3. Set the Allow basic authentication option to ON for the Authenticators Management event.

    Basic authentication is supported for one event type (Authentication Management event) and three methods: Password (PIN), LDAP Password, and HOTP.

  4. Create an authentication chain using any of these supported methods. For example, select the LDAP Password method while creating the chain.

    For more information, see Authenticators Management in the Advanced Authentication - Administration guide.

  5. Go to Events > select the Authenticators Management event > add the chain created in the previous step.

Configuring Access Gateway

You can configure Access Gateway to accelerate a back-end web server and inject users’ credentials into the Authorization HTTP header. This enables SSO to any web server that supports basic authentication. This Authorization HTTP header is a standard header that can include a Base64 encoded version of username:password. In the case where Advanced Authentication is the back-end web server, it expects a special formatting of the Authorization header. For example, <username>:<password>:1. A virtual attribute will be used to provide this formatting.

  1. Set up Access Manager to inject the non-standard Authorization HTTP header.

    To do this, create a virtual attribute based on the users’ cn and manipulate the data with JavaScript.

    Perform the following steps to create and configure the virtual attribute:

    1. Click Devices > Identity Server > Shared Settings > Virtual Attributes > Virtual Attribute > +.

    2. Specify a name such as va-adv-auth and description for the virtual attribute.

    3. Under Step 1: Provide input parameters, specify a name for the attribute and select cn as Parameter Value.

    4. Under Step 2: Provide a modification function, select Advanced JavaScript.

    5. Specify the following JavaScript:

      function main (P1){
        return P1+":LDAP_PASSWORD:1"
      }
    6. Click OK.

    7. Update Identity Server.

    For more information about virtual attributes, see User Attribute Retrieval and Transformation in the NetIQ Access Manager Appliance 5.0 Administration Guide.

  2. Create an Identity Injection policy that injects the above virtual attribute value as part of the username, with the users’ password as password. This policy will later be applied to the protected resources associated with the Advanced Authentication enrollment portal page.

    1. In Administration Console Dashboard, click Policies > Policies.

    2. Select the policy container and click New.

    3. Specify a name for the policy, select Access Gateway: Identity Injection for the type of policy, then click OK.

    4. Select 1 in Priority.

    5. In Actions, click New, then select Inject into Authentication Header.

    6. In User Name, select Virtual Attributes and the attribute created in Step 1.

    7. In Password, select Credential Profile and in LDAP Credentials, select LDAP Password.

    8. Click OK.

    For more information about Identity Injection policies, see Identity Injection Policies in the NetIQ Access Manager Appliance 5.0 Administration Guide.

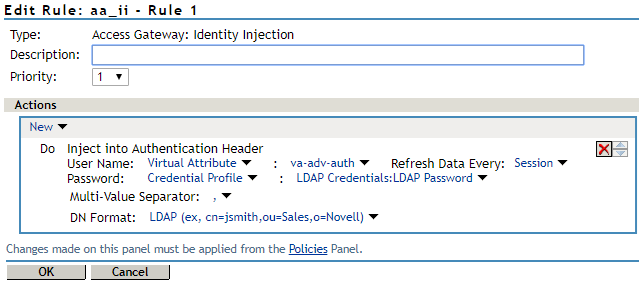

    The following diagram shows how the identity injection appears in Access Gateway after configuration:

  3. Accelerate the Advanced Authentication enrollment server by using Access Gateway.

    For example, set up a domain based multi-homed proxy for the Advanced Authentication enrollment server:

    1. When you configure this proxy, specify aa.b2c.com in Published DNS Name and Advanced Authentication server IP address in Web Server Address.

    2. Create a protected resource for the path (can be /* or specifically /account/basic) and assign the Secure Name/Password - Form contract to this resource. So that only authenticated users can access this resource. Assign the Identity Injection policy created in Step 2 to this protected resource.

    3. Update Access Gateway after applying these changes.

    See Configuring Protected Resources in NetIQ Access Manager Appliance 5.0 Administration Guide.

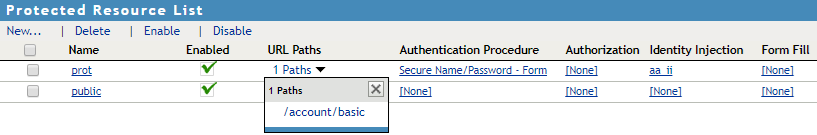

    The following diagram shows the protected resource in Access Gateway after configuration:

  4. Users can access the Advanced Authentication proxy URL (https://aa.b2c.com/account/basic). Also, users can see their Advanced Authentication enrollment page after logging into Identity Portal.

6.0 Enabling Self Service Password Reset and Advanced Authentication Integration in Access Manager

To enable integration with Self Service Password Reset and Advanced Authentication, you must specify server details for these products in Access Manager Identity Server.

6.1 Configuring Self Service Password Reset Server Details in Identity Server

Perform the following steps to specify the Self Service Password Server details:

  1. Click Devices > Identity Server > Shared Settings > Self Service Password Reset.

  2. Select Integrate with Self Service Password Reset (SSPR).

  3. Specify the following details under Server Configuration:

    Field

    Description

    Published SSPR URL

    Select http or https and specify the Self Service Password Reset server’s IP address or DNS name with the port number.

    If Self Service Password Reset is configured behind Access Gateway, specify Access Gateway's Published URL for Self Service Password Reset. For example, https://www.b2c.com/sspr/.

    API User Name

    Protected web services that require authentication through a user name and password use the secret name as user name. The secret name is generated while configuring the Self Service Password Reset server. For example, specify NAMSECRET in API User Name.

    API Password

    Protected web services that require authentication through a user name and password use a secret key as password. The secret key is generated while configuring the Self Service Password Reset server. For example, specify pass@123 in API Password.

  4. Click the + icon under Integration Links to see URLs associated with the specified Self Service Password Reset server.

    Integration Links displays default URLs. These URLs must be modified to match the URLs specified on the Self Service Password Reset server. If you modify the integration links in the Self Service Password Reset server, specify the same integration links in SSPR Portal Links and REST APIs. The values specified in Integration Links come after Published SSPR URL to form a destination path.

    IMPORTANT:In some of the default URLs, forwardURLs are appended to ensure that the user is forwarded to correct URLs after performing the corresponding tasks.

    Field

    Description

    User Profile URL

    If a forwardURL is provided, the user is redirected to that URL after updating user profile in user portal. For example, if User Profile URL is set to /private?forwardURL=https://idp.b2c.com:8443/nidp/portal, the user is directed to that URL after profile update.

    New Registration URL

    If a forwardURL is provided, the user is redirected to that URL after registering as a new user on B2C portal page. For example, if User Registration URL is set to /private?forwardURL=https://idp.b2c.com:8443/nidp/portal, the user is directed to that URL after registration.

    Auto Registration URL

    It automatically registers users when users log in using social authentication. It compares the user specified attributes to the stored attributes. Specify /public/newuser/profile/Social.

    Forgot Password URL

    If a forwardURL is provided, the user is redirected to that URL after password reset. For example, if Forgot Password URL is set to /private?forwardURL=https://idp.b2c.com:8443/AGLogout, then the user is directed to that URL after the user resets password.

    NOTE:Forgot Password URL is not accessible if Logout after password change is enabled in the Change Password module of Self Service Password Reset.

    Health API

    It is used to obtain the health status of the Service Password Reset server. The default URL is /public/rest/health.

    Back Channel Request Signing API

    Access Manger uses this API to obtain information from Self Service Password Reset server. The default URL is /public/rest/signing/form.

    Connection Timeout

    Time limit to establish the connection with Self Service Password Reset server. The connection must establish within the specified time.

    Read Timeout

    Time limit to obtain the information from Self Service Password Reset after establishing the connection. Access Manager must obtain information within the specified time.

    IMPORTANT:

    • Ensure that these URLs are specified in the Self Service Password Reset white list. To specify these URLs in white list, navigate to Self Service Password Reset > Settings > Security > Web Security > Whitelist.

    • If a forwardURL is not provided, then the default URLs are used. To see default URLs, navigate to Self Service Password Reset > Settings > Application > Forward URL.

  5. Click Apply Changes.

6.2 Configuring Advanced Authentication in Identity Server

Perform the following steps to configure Advanced Authentication server details in Identity Server:

  1. Click Devices > Identity Server > Shared Settings > Advanced Authentication.

  2. Specify aa.b2c.com and 443 in Server Domain.

    For more information, see Configuring Advanced Authentication Server in the NetIQ Access Manager Appliance 5.0 Administration Guide.

After specifying the Advanced Authentication server details in Identity Server, an Identity Portal endpoint is automatically created in Advanced Authentication. Perform the following steps to add this endpoint to the white list:

  1. Log in to Advanced Authentication Administration Portal.

  2. Navigate to Advanced Authentication Administration > Events > Authenticators Management.

  3. In Authenticators Management, the Identity Portal endpoint is listed as Identity Portal’s hostname. Move the Identity Portal’s hostname from Available to Used.

  4. Click Save.

7.0 Configuring Social Authentication Contracts

You can configure a social authentication contract to allow users to log in using their social login information.

Perform the following steps to create a social authentication contract:

  1. Perform the following steps to create a social authentication class:

    1. Log in to Administration Console of Access Manager.

    2. Click Devices > Identity Servers > Edit > Local > Classes. Select New to add a new class.

    3. Specify a name for the class.

    4. Select Social Auth Class from the Java Class list and click Next.

    5. Select the Identify User Locally, Auto Provision User Using and SSPR options to automatically provision a social user to a local user using Self Service Password Reset.

    6. Select the following Social Attributes and their equivalent Local Attributes:

      Social Attribute

      Local Attribute

      Email

      Ldap Attribute:mail [Ldap Attribute Profile]

      FirstNamePlusLastName

      Ldap Attribute:cn[Ldap Attribute Profile]

      For Active Directory, select LdapAttribute:sAMAccountName [LdapAttribute Profile]

      UniqueId

      Ldap Attribute:carLicense [Ldap Attribute Profile]

      IMPORTANT:Select only those social attributes that are provided by social providers. In addition, the social attribute must be mapped to the correct type of local attribute. For example, provisioning will not occur in the following scenarios:

      • If you use Facebook or Google+ as your authentication provider and select DisplayName as Social User Attribute. Because these providers do not have the DisplayName attribute.

      • If you use Twitter as your authentication provider and select Email as Social User Attribute. Because Twitter does not provide email.

      • If more than one social authentication providers are configured and Local Attribute is a single-valued attribute. Here, the Local User LDAP attribute must be multi-valued attribute to store the social attributes corresponding to each social provider.

    7. Select User Identifier adjacent to the mapping that will be used to identify the user.

    For more information about how to create and configure a social authentication class, see Configuring the Social Authentication Class in the NetIQ Access Manager Appliance 5.0 Administration Guide.

  2. Create a method in Identity Server. When you configure this method, select the social authentication class created in the previous step from the Class list.

    For more information about how to create and configure a method, see Configuring Authentication Methods in the NetIQ Access Manager Appliance 5.0 Administration Guide.

  3. Create a contract in Identity Server. When you configure this contract, add the method created in the previous step from Available methods to Methods. Ensure that you select Satisfiable by a contract of equal or higher level. So that this contract is satisfied by the device registration contract that you will create in Configuring a Device Registration Contract.

    For more information about how to create and configure a contract, Configuring Authentication Contracts in the NetIQ Access Manager Appliance 5.0 Administration Guide.

  4. If the user store is eDirectory, configure a passwordFetch method pointing to that directory and add the passwordFetch method to this contract.

IMPORTANT:If the user store is eDirectory, configure the passwordFetch class in each social contract to enable SSO for users to the following pages:

  • The Profile page in Self Service Password Reset

  • The Enrollment page in Advanced Authentication

If the user store is not eDirectory, users cannot view these pages.

8.0 Configuring a Device Registration Contract

You can configure a contract that allows users to register their devices after authentication. You can also configure an Advanced Authentication method for additional authentication.

Perform the following steps to enable device registration capability:

  1. Create a risk-based policy and assign it to a risk-based authentication class.

    For information about how to create and configure a risk-based policy, see Configuring a Risk Policy in the NetIQ Access Manager Appliance 5.0 Administration Guide.

  2. Create a Device Fingerprinting Rule and assign it to the risk-based policy created in the previous step. Select the following options when you configure rule definitions:

    Store Fingerprint in: Select Server to store the fingerprint in the configured risk-database. You can use this option only in risk-based post-authentication scenarios.

    To store the fingerprint in a risk-database, you must enable storing the user history in the User History tab.

    See Enabling User History in the NetIQ Access Manager Appliance 5.0 Administration Guide.

    Prompt User Consent: Select this option to allow users to provide their consent before storing the device fingerprint.

    Send Email Notification: Select this option to send an email to a user when the user logs in using an unknown device.

    For more information about how to specify the email server details, see Email Server Configuration in the NetIQ Access Manager Appliance 5.0 Administration Guide.

    For more information about how to create and configure a rule, see Configuring Rules in the NetIQ Access Manager Appliance 5.0 Administration Guide.

  3. (Optional) In the risk-based policy, configure additional authentication using an Advanced Authentication method.

    For more information, see Configuring Authentication Methods in the NetIQ Access Manager Appliance 5.0 Administration Guide.

    To set the enrollment URL during the additional authentication, add the following Advanced Authentication Enrollment URL property in the advanced authentication method:

    Property Name: ENROLLURL

    Property Value: https://aa.b2c.com/account/basic

  4. Create a method for the risk-based authentication class.

    For more information, see Configuring a Method for an Authentication Class in the NetIQ Access Manager Appliance 5.0 Administration Guide.

  5. Create a contract for the risk-based authentication class. When you configure this contract, select the first method as Secure Name/Password - Form, and select the second method as risk-based method created in previous step. In addition, ensure to select the Satisfiable by a contract of equal or higher level option.

    For more information, see Configuring a Contract for an Authentication Class in the NetIQ Access Manager Appliance 5.0 Administration Guide.

When this contract is configured, users can register their device, view the registered devices, and delete these devices.

9.0 Configuring Email Server

You can configure Access Manager if you want to send email notifications to users when they log in using a new device. To enable this capability, specify email server details in the Administration Console Dashboard. In addition, you must select Send Email Notification option while configuring the Device Fingerprinting Rule.

For more information about how to specify the email server details, see Email Server Configuration in the NetIQ Access Manager Appliance 5.0 Administration Guide.

10.0 Branding and Customizing

10.1 Branding and Customizing Access Manager

You can change the default branding of the user portal page using the Branding option on Administration Console Dashboard. For more information, see Branding of the User Portal Page in the NetIQ Access Manager Appliance 5.0 Administration Guide.

To perform complex customization, you can edit the JSP file.

For information about Identity Server customization, see Customizing Identity Server in the NetIQ Access Manager Appliance 5.0 Administration Guide.

For information about Access Gateway customization, see Email Server Configuration in the NetIQ Access Manager Appliance 5.0 Administration Guide.

10.2 Customizing Self Service Password Reset

You can customize the theme of Self Service Password Reset. See the following resources for instructions:

Customizing the Theme of Self Service Password Reset

10.3 Customizing Advanced Authentication

You can customize the logo for the Administration and Self-Service portal in Advanced Authentication. You can also set an alternate text instead of an image as logo.

For more information, see Configuring Policies in the Advanced Authentication - Administration Guide.

11.0 Validating Deployment

After completing the portal deployment, validate the following scenarios:

  • Agent registration: Agent registration is achieved through visiting the https://www.b2c.com/sspr/public/activate link.

    1. The B2C customer center creates an agent username and assigns appropriate agent-specific rights to this username.

    2. Then the customer center sends an email to the agent’s email ID with this pre-created username. The agent needs to click the link https://www.b2c.com/sspr/public/activate to register to the agent account.

    3. After clicking the link and providing the username, the agent is prompted to specify a code for validating the account. The agent gets the required code through an email.

    4. After specifying the correct code, the agent is asked to set the password. After setting the password, the agent registration is complete. The agent can log in to the portal by specifying the username and password.

  • User self-registration: A user can click the Register link in the login page (https://www.b2c.com/portal) and perform self-registration.

  • Social registration: A user can click the favorite social provider link on the login page to achieve this.

  • Login as an agent or a self-registered user:

    1. A registered agent or a self-registered user can provide username and password in the Login form on the login page to achieve this.

    2. For the first time login, a device is detected as a new device and prompted for second factor authentication.

    3. After the second factor authentication is completed, the user is prompted with a Consent screen to allow or deny storing the device details.

    4. If the user selects to allow consent, the device details are stored in Access Manager. The next login from the same device does not prompt for second factor authentication.

  • Login as a social profile registered user: The registered social user can click the social provider link in the login page to achieve this.

  • User account self-management: After login, the user is redirected to the User Portal. When the user clicks the username in the upper right corner, a menu similar to the following displayed:

    The user can perform the following actions using this menu:

    Click

    To

    Profile

    View and edit profile, change password, set security questions and answers to recover forgotten password, and delete the account.

    View My Devices

    View and delete devices.

    View My Devices

    Enrollment to the new authentication method.

    Manage Auto-Connect

    View SAML 2.0 service providers and shared attributes.

    Manage App Permissions

    View OAuth 2.0 resources, shared scopes, and attributes.

12.0 Progressive Profiling

Progressive profiling helps you improve the user experience by gathering the user’s data gradually. Instead of a huge overwhelming form asking for all details, progressive profiling uses shorter and multiple sequential forms. This approach focuses on collecting only the important information from a user that is required at that moment.

With progressive profiling, you understand your users more accurately, about what information they can share comfortably.

You can ask a user to provide only the minimal details, such as name and email address, during the registration. The type of information provided during registration can vary depending on the type of information or service for which a user is requesting.

The user can provide more details over time as and when performing a specific action. This in turn simplifies the registration and login experiences for users.

For example,

User Action

Information Required from a User

Registration

Name and Email Address

Search for an insurance policy

Contact number and city

Buy an insurance

Date of birth and postal address

To configure progressive profiling for this example scenario, perform the following tasks in Self Service Password Reset:

12.1 Configuring the New User Registration Module

  1. Log in to Self Service Password Reset at https://dns-name/sspr as an administrator.

  2. In the toolbar, click your name.

  3. Click Configuration Editor > Modules > Public > New User Registration > New User Profile > default.

  4. Configure the first name, last name, and email ID.

  5. Enable the New User Registration module:

    1. Click Modules > Public > New User Registration > New User Settings.

    2. Select Enable New User Registration.

  6. In the toolbar, click Save changes.

With this configuration, a user needs to provide only the first name, last name, and email ID while registering.

12.2 Configuring Profiles

Perform the following actions:

  1. Modify the default profile to collect LDAP attributes for the user's contact number and the name of the city. If a user has already provided this information, the user does not require to provide it again.

    See Modifying the Default Profile.

  2. Add another profile to collect LDAP attributes for the user’s date of birth and postal address.

    See Adding a New Profile.

This configuration enables you with collecting the relevant user information as and when required. The user does not need to share the date of birth and postal address while performing a search for an insurance policy. When the user decides to buy a policy, you collect this information.

Modifying the Default Profile

  1. Log in to Self Service Password Reset at https://dns-name/sspr as an administrator.

  2. In the toolbar, click your name.

  3. Click Configuration Editor > Modules > Authenticated > Update Profile > Update Profile Profiles > default.

  4. In LDAP Search Filter, specify (&((!(mobile=*))(!(city=*)))((!(homepostaladdress=* ))(!(Version=* )))).

  5. In the Update Profile Form section, add contact number and city.

  6. In the toolbar, click Save changes.

Adding a New Profile

  1. Log in to Self Service Password Reset at https://dns-name/sspr as an administrator.

  2. In the toolbar, click your name.

  3. Click Configuration Editor > Modules > Authenticated > Update Profile > Update Profile Profiles > (Edit List).

  4. Click Add Profile and specify a name for the profile.

  5. Click OK.

  6. In LDAP Search Filter, specify (|((objectClass=person) (&((mobile=*)(city=*))(!(homepostaladdress=* ))(!(Version=* ))))).

  7. In the Update Profile Form section, in addition to the contact number and city, add the date of birth and postal address.

  8. In the toolbar, click Save changes.

When filling up the postal address and date of birth details on this form, the user sees the contact number and city that were provided earlier.

12.3 Integrating Profiles with Protected Resources or Custom Portals

The SSPR New User Registration module must be publicly accessible whereas the SSPR Update Profile module must be protected. To support this, configure URLs as public or restricted by using your proxy or Access Gateway configuration.

You need to integrate the following URLs with a protected resource or a custom portal for which you want to enable progressive profiling:

  • To get the new user registration form: https://dns-name/sspr/public/newuser

  • To get the profile: https://dns-name/sspr/private/updateprofile

13.0 Business To Consumer Wizard: Sample Configuration

This section explains how to configure the B2C access management capabilities by using the B2C wizard. This sample configuration is based on the scenario explained in An Example Scenario. This section includes:

IMPORTANT:This sample configuration and the business to consumer (B2C) wizard are for demonstration purposes only. See An Example Scenario to deploy B2C capabilities in your environment.

13.1 Prerequisites

  1. Configure the same user store for Access Manager and Self Service Password Reset. For more information, see Configuring Identity User Stores in the NetIQ Access Manager Appliance 5.0 Administration Guide.

    Ensure that this user store is configured as the default user store. You can view and change the default user store by clicking Devices > Identity Servers > Edit > Local > Defaults. Alternatively, you can edit the authentication methods and select this user store.

  2. Add the Advanced Authentication server certificate and Self Service Password Reset sever certificate to the Identity Server trust store on Security > Trusted Roots. For information about adding certificates, see Managing Trusted Roots in the NetIQ Access Manager Appliance 5.0 Administration Guide.

  3. Add the host entries for Access Gateway and Advanced Authentication proxy to all Identity Servers.

13.2 Using the B2C Wizard

  1. In Administration Console Dashboard, click Business to Consumer > Configure Access Manager.

  2. Specify the following details in Access Manager Configuration:

    Field

    Description

    Identity Server Cluster

    Select the appropriate Identity Server cluster.

    Access Gateway Cluster

    Select the appropriate Access Gateway cluster that is associated with the Identity Server cluster that you selected in Identity Server Cluster.

    Create Risk-based Policy

    (optional)

    Select to automatically create a risk policy. It also creates an authentication class, a method, and a contract in Identity Server for this policy.

    NOTE:This risk-based policy creates a device fingerprinting rule. If a device fingerprinting rule already exists, policy will use the existing device fingerprinting rule.

    B2C Portal DNS

    Specify the B2C Portal DNS or keep the default value.

    NOTE:B2C Portal DNS Name specified in Access Manager Configuration is updated in Published DNS Name in Self Service Password Reset (SSPR) Server Details and Advanced Authentication Server Details automatically.

    B2C Portal IP

    Specify the B2C Portal IP address where the index.html and index.css files will be hosted.

    Non-Secure Port

    Specify a non-secure port value.

    Secure Port

    Specify a secure port value.

  3. Specify the following details in Self Service Password Reset (SSPR) Server Details:

    Field

    Description

    Published SSPR URL

    Specify the IP address and port number of the Self Service Password Reset server.

    API User Name

    Specify the secret name that you will specify while configuring the Self Service Password Reset server.

    API Password

    Specify the secret key that you will specify while configuring the Self Service Password Reset server.

  4. Specify the following details in Advanced Authentication Server Details (optional):

    Field

    Description

    Configure Advanced Authentication

    Select this option if you want to configure Advanced Authentication.

    Server Domain

    Specify the IP address and the port number of the Advanced Authentication server.

    Published DNS Name

    Contains the DNS name of the Advanced Authentication server. The default value is aa.b2c.com.

  5. Click OK.

    After the configuration is saved, you will be directed to Configuration Information page.

  6. Perform the tasks listed under the Configuration: Next Steps pane on the Configuration Information page.

14.0 Legal Notice

For information about legal notices, trademarks, disclaimers, warranties, export and other use restrictions, U.S. Government rights, patent policy, and FIPS compliance, see https://www.microfocus.com/about/legal/.

© Copyright 2020 Micro Focus or one of its affiliates.
