Outgoing Changes Mode

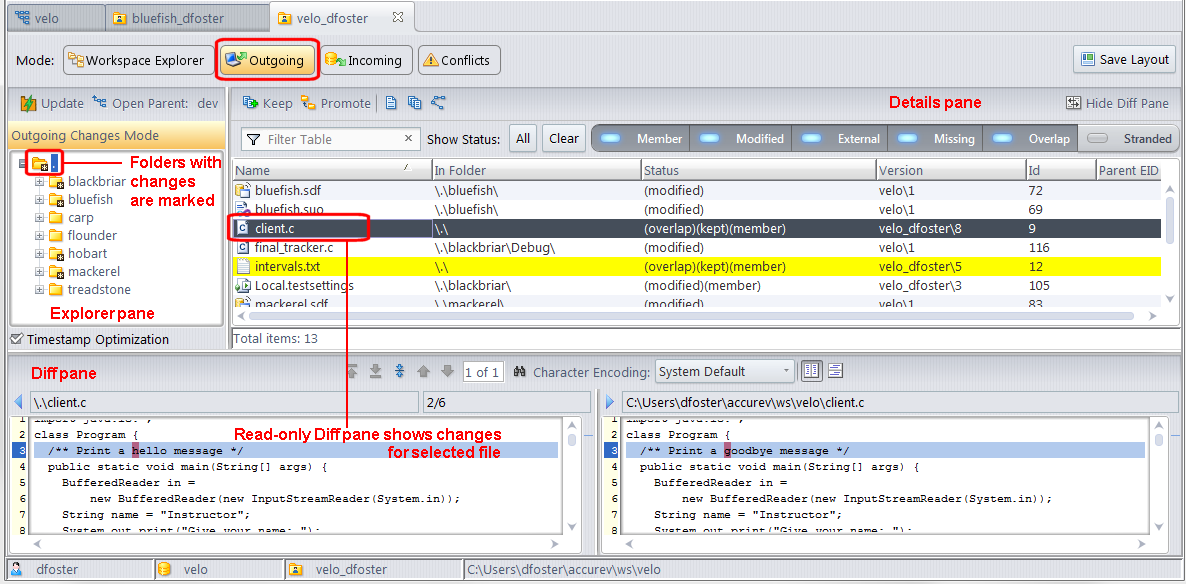

The Outgoing Changes mode displays changes to the current workspace or stream. For the workspace File Browser, Outgoing Changes mode shows only those files and directories that have been added to, changed in, or removed from the workspace, as shown in the following illustration. Outgoing Changes mode for the stream File Browser shows any work that has been promoted to that stream from a workspace or child stream.

Tip: If you are an existing AccuRev user, the Outgoing Changes mode displays the same results as if you had performed a search for Pending elements in AccuRev 5.7 and earlier. To these results, it adds (external) files and (stranded), (missing), and (member) elements.

You can use the Outgoing Changes mode to accomplish many tasks in AccuRev, but its primary purpose is to provide a streamlined view of changes to the workspace and stream, and the tools to let you quickly save and share those changes with others.

This section covers the following topics:

•	The Explorer and Details Panes on page 65

•	Filtering the Details Pane by AccuRev Status on page 69

•	Saving and Sharing Your Work on page 70

See File Browser Modes on page 53 for more information on other modes.

The Explorer and Details Panes

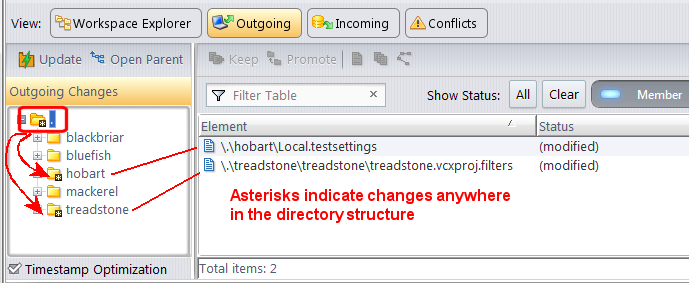

In Outgoing Changes mode, the Explorer pane shows the complete directory structure of the current workspace or stream. Directories that contain changes -- whether modified elements, or files that have not yet been added to AccuRev, for example -- are identified with an asterisk, as shown in the following illustration.

Note that directories are marked with an asterisk regardless of where in the directory the change is located. Here, for example, the \treadstone directory has an asterisk even though the modified file is located in the \treadstone\treadstone subdirectory, and not at the directory root (as is the case with the change in the \hobart directory). Similarly, the root node is marked with an asterisk if there are changes anywhere in the workspace or stream.

Clicking a directory with an asterisk displays the changes in that directory. To help you quickly identify where in the workspace a specific change exists, the Element column in the Details pane displays the full path of the changed element.

Tip: Since the Outgoing Changes mode shows only changes in the workspace or stream, the Details pane will be empty if you click a directory that is not marked with an asterisk

You can format columns, change the sort order, and filter displayed objects in the Details pane as you would with any other table in AccuRev. See Working with Tables on page 14 for more information. In addition, you can filter the table based on AccuRev status. See Filtering the Details Pane by AccuRev Status on page 69 for more information.

Timestamp Optimization option. By default, AccuRev uses cached server information to identify which files in the workspace should have a status of (modified). To learn more about this option and when you might want to turn it off, see Chapter 5 Timestamp Optimization (TSO) in the AccuRev Administrator’s Guide. See AccuRev Element Status Reference on page 136 for a discussion of (modified) and other statuses.

Details Pane Toolbar Reference

The following table summarizes the tools available on the Details pane toolbar and where to find more information.

Tool	Description	Available For...
Keep	Saves your work by creating a new version in the workspace stream. See Keep: Creating a New Version on page 110.	Workspace
Promote	Shares your work with others by sending the selected files to the backing stream. See Promote: Sharing Your Work on page 113.	Workspace and Stream
Demote	Backs out changes by sending the selected files to a child stream or workspace. See Demote: Moving Elements Out of a Stream on page 99.	Stream
Annotate	Lists the contents of the selected text file, annotating each line. See Annotate: Reviewing Transactions on an Element on page 91.	Workspace and Stream
History	Displays the transactions associated with the selected element in the History Browser. See Chapter 5 The History Browser.	Workspace and Stream
Version Browser	Displays all the versions, and their relationships, of the selected element in the Version Browser. See Chapter 6 The Version Browser.	Workspace and Stream
Revert to Basis	Used to undo changes to the version in a stream. See Revert: Undoing Changes on page 126.	Stream
Send to Change Palette	Used to resolve conflicts when promoting one or more versions from a dynamic stream to a stream other than its parent stream. See Chapter 10 Change Packages.	Stream

The Diff Pane

When you select a file in the Details pane, AccuRev displays versions of that file in a read-only Diff pane that shows you the workspace version that you modified, on the left, and the most recent changes you made to that version, on the right, as shown in the following illustration. These are the changes that will be saved to the workspace version when you keep the file, and written to the workspace’s parent stream when you promote the file.

If you select a file that AccuRev cannot diff (a file with a status of (external) or some types of binary files, for example), AccuRev displays an informational message in the Diff pane.

The Diff pane is read only, but the changes navigation, coloring, and other features it uses are similar to those of the AccuRev Diff tool. See Diff Tab Layout on page 207 for more information.

Tip: You can hide the Diff pane by clicking the Hide Diff Pane button ().

Example

Consider the following dev stream and its workspaces:

Each of these workspaces has a current version of the file hello_world.txt:

import java.io.*;

class MySecondProgram {

/** Print a hello message*/

public static void main(String[] args) {

BufferedReader in =

new BufferedReader(new InputStreamReader(System.in));

String name = "Professor";

System.out.print("Give your name: ");

try {name = in.readLine();}

catch(Exception e) {

System.out.println("Caught an exception!");

}

System.out.println("Hello " + name + "!");

}

}

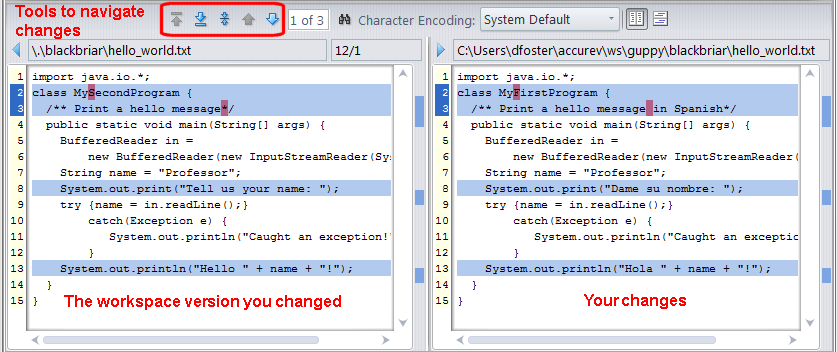

If user hdylan makes changes to the file for a Spanish speaking user and then keeps his changes, the Outgoing Mode diff pane shows the version of the file he modified in his workspace on the left, and the changes he made to that version on the right, as shown here:

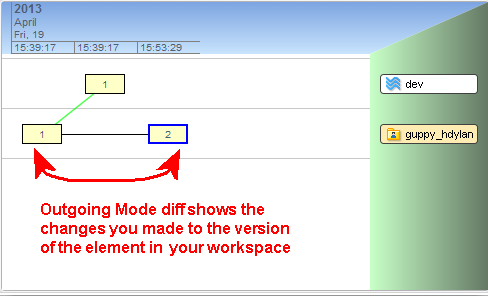

The Version Browser depicts these change events as follows -- version 2 is the most recent version, the one that includes hdylan’s changes:

See Chapter 6 The Version Browser to learn more about the Version Browser and its features.

Filtering the Details Pane by AccuRev Status

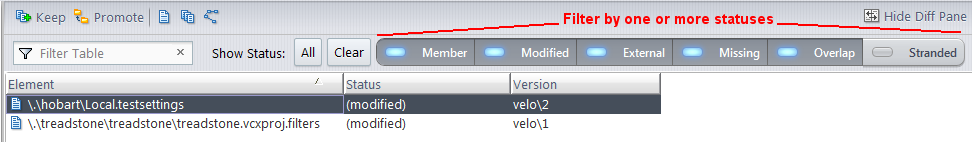

The Details pane toolbar includes a filter that lets you filter by one or more of AccuRev statuses.

These filters, and their availability in both workspace and stream File Browsers, are summarized in the following table.

Filter	Status Description	Available For...
Member	The element has been changed and the changes have been saved to the workspace.	Workspaces and streams
Modified	The element has been changed but has not been saved to the workspace (using Keep).	Workspaces only
External	The file was added to the workspace but has not yet been placed under AccuRev control.	Workspaces only
Missing	The element was deleted from the workspace (using a file system delete command, for example).	Workspaces only
Overlap	Changes have been made to the element in both the workspace and in the parent stream.	Workspaces and streams
Stranded	The element is active in the workspace or stream but it cannot be accessed through the file system. This can occur when an element’s directory is defuncted or excluded, for example.	Workspaces and streams

See AccuRev Element Status Reference on page 136 for more information on AccuRev element statuses, their definitions, and how they occur.

Using the Status Filter Toolbar

Status buttons act like toggles and can be turned on and off by clicking them. For example, if you do not want to see files with an (external) status, click the External button. Here are some other usage tips:

•	To show only objects with one or more specific statuses, click Clear, and then click the buttons for those statuses.

Tip: When you click Clear, the Details pane will be empty because the Outgoing Changes mode shows only those objects and elements with statuses represented by a filter.

•	To quickly select all status filters, click the All button.

•	To save the set of selected status filters as your default, click the Save Layout button.

Saving and Sharing Your Work

The Outgoing Changes mode shows you the changes in the current workspace or stream -- work that at some point you probably want to share with others. In AccuRev, you share your work by promoting changes from a stream or workspace to the parent stream.

To promote changes from the File Browser Outgoing Changes mode:

1.	Select the files you want to promote.

2.	Click the Promote button () on the toolbar.

Tip: In the workspace File Browser, the Promote action automatically performs any other actions that might be required in order to promote the file. For example, when you promote an external file (one that is not currently under AccuRev control), AccuRev first performs the Add and Keep actions.

In addition, if you have selected one or more files that cannot be promoted (because they have an (overlap) status, for example), AccuRev informs you of the situation and gives you the opportunity to continue the Promote action for all eligible files.

See Saving a File on page 78 and Sharing Your Work with Others on page 80 for more detailed information on saving and sharing work in AccuRev.
