4. The StreamBrowser : The Overlaps Tab

The Overlaps Tab
The Overlaps tab displays all versions with (overlap) status, both in the selected workspace and in the workspace's entire backing chain.
Opening an Overlaps Tab
Choose Show All Overlaps from the context menu of a workspace on a Stream Browser tab.
Overlaps Tab Layout

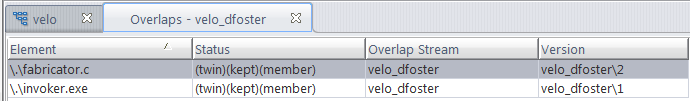

The Overlaps tab contains a table with these columns:
Element (or separate "Name" and "In Folder" columns)
The pathname within the depot of the element with the overlap.
Status
The status of the version in that workspace or stream.
Overlap Stream
The workspace or stream that contains a version with (overlap) status.
Version
The version-ID of the version in that workspace or stream.
Working in an Overlaps Tab
For versions in dynamic streams (but not workspaces), you can begin the process of resolving the overlap:
1.
2.
Right-click the selection, and choose Send to Change Palette from the context menu.
This opens a Change Palette tab, with an entry for each version you selected. The destination stream is automatically set to the parent of the stream where those versions are located. You can resolve the overlaps by performing merges on those versions.
