Setting the Agent Proxy

The Enterprise Server for .NET Azure management pack is run through a proxy machine.

The proxy machine can be any machine that is managed by a SCOM server, including the SCOM server itself.

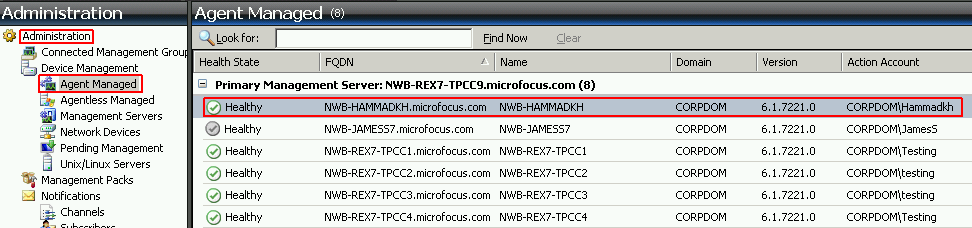

  • Open the SCOM administration tool, and select the machine to act as the agent.

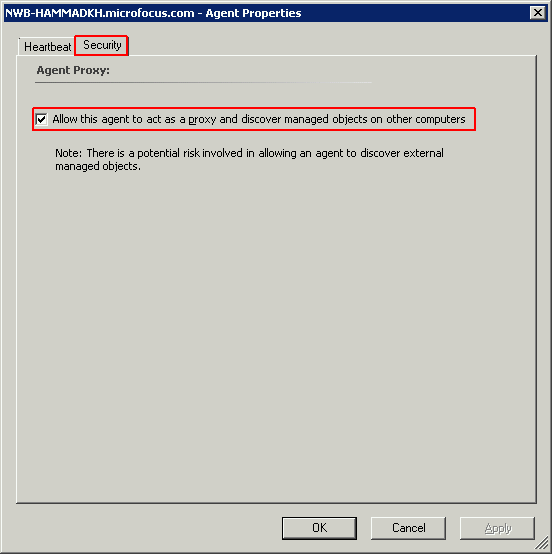

  • Right-click, click Security and check the box to allow the agent to act as a proxy.

  • On the proxy machine create a folder called c:\SEE_Azure_MP and copy the following items to it.
    • From the products etc\SEE\SCOM\Azure directory:
      • AzureBrowser.exe
      • AzureDeployment.xml
    • From the Azure sdk:
      • Microsoft.WindowsAzure.StorageClient.dll
      • Microsoft.WindowsAzure.StorageClient.xml
    • Import the management certificate associated with the Windows subscription into the machine's certificate cache.
    • Modify the AzureDeployment.XML file to include your Azure subscription ID, the slot, the certificate thumbprint and the subscription name.
Parent topic: System Center Monitoring Pack for Windows Azure Applications
