Key Mapping

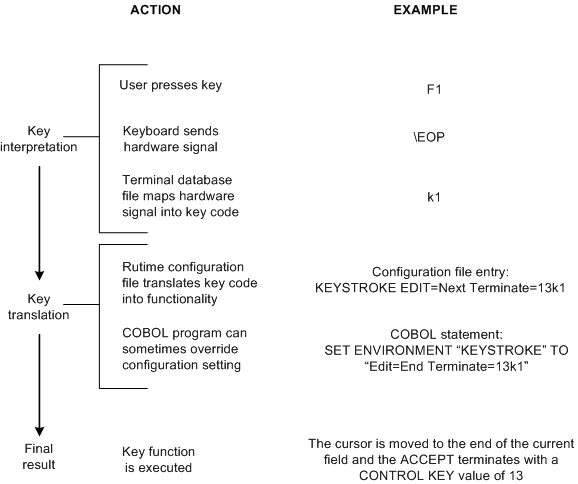

The mapping of keys to functions is one of the main activities of the Terminal Manager. If you understand what happens when a user presses a key, you'll have a good feel for how you can control the interaction between the keyboard and the COBOL application. The next diagram depicts the overall process, from keystroke to COBOL program.
