Configuring the Message Broker

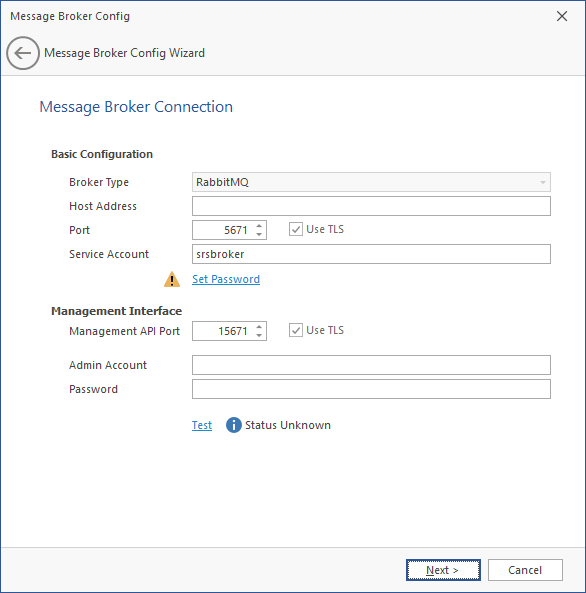

1. Click Configure Message Broker.



2. Specify settings in the following fields:

   Basic Configuration: This region is where you specify basic configuration settings for the message broker.

   Broker Type: This field indicates the RabbitMQ message broker that you installed previously.

   Host Address: Specify the IP address or DNS name of the server hosting RabbitMQ.

   Port: Unless there is a port conflict, leave the setting at 5671.

   Use TLS: The Transport Layer Security protocol is established by default.

   Service Account: By default, this field contains the srsbroker account name.

   Set Password: Click this to establish a password for the service account.

   Management Interface: This region is where you specify the admin account and password for the RabbitMQ installation that you performed previously.

   Management API Port: Unless there is a port conflict, leave the setting at 5671.

   Use TLS: The Transport Layer Security protocol is established by default.

   Admin Account: Specify the admin account name that you established when you installed RabbitMQ.

   Unless you changed the default name, the admin account name is admin.

   Password: Specify the admin account password that you established when you installed RabbitMQ.

   Unless you changed the default password, the admin account password is srsadmin.

   Test: Click this to verify the message broker communication is functioning properly.

3. Click Next.

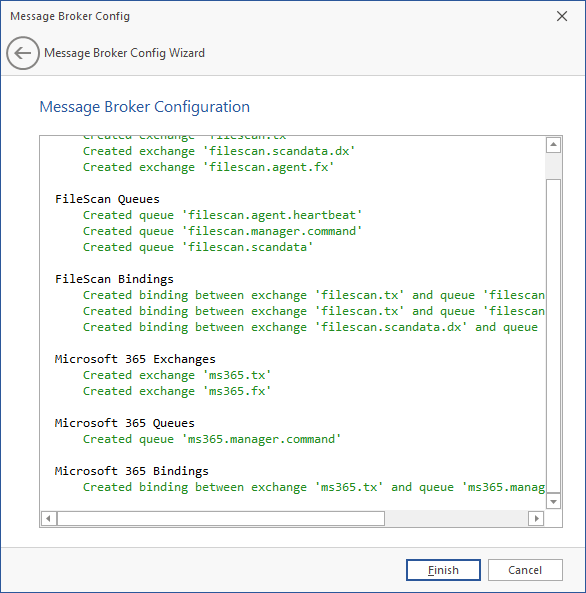

4. Click Finish.

   The message broker is now configured and connected.
