11.1 Deployment for Migration to VMware Cloud on AWS

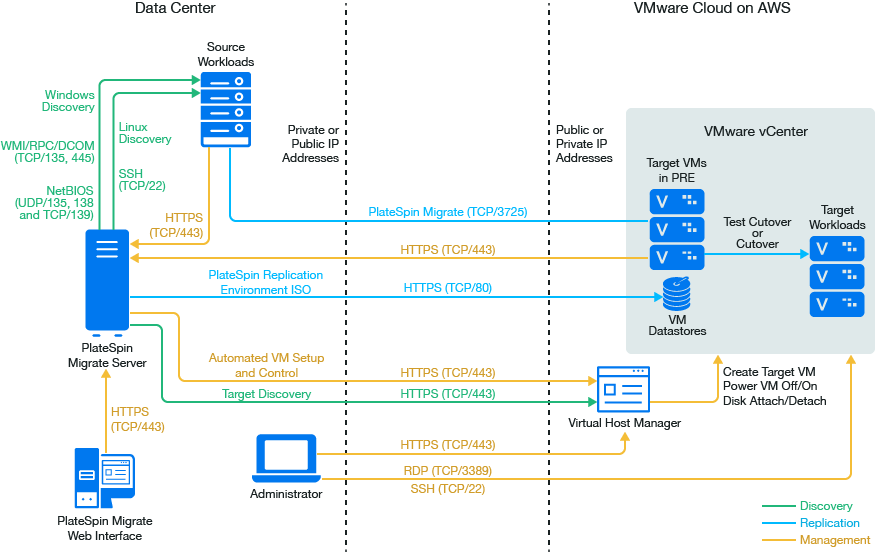

Figure 13-1 shows the location of various components in your automated VMware migration environment and the communications between them. Automated migration to VMware Cloud (VMC) on AWS is supported only by PlateSpin Migrate Web Interface.

NOTE:Figure 13-1 depicts automated discovery and the network requirements for Windows and Linux workloads. You can alternatively use Migrate Agent on the source workload to register the workload and send its inventory details to PlateSpin Migrate server using HTTPS (TCP/443). For network requirements when using Migrate Agent, see Section 2.6.2, Requirements for Workload Registration and Section 19.7, Registering Workloads and Discovering Details with Migrate Agent.

Figure 11-1 Automated Migration to VMware Cloud on AWS
