Chapter 4: Using Tools

This chapter describes the tools available from the Tools menu and how they can help you in your tasks.

4.1 Introduction

Analysis tools provide powerful insights into how your source code systems function. They are accessed from the Tools menu and are named according to their functionality. The following tools are available for you to use during your analysis tasks:

4.2 Integrated Editor

The Integrated Editor, or Split Screen Editor as it appears in the encapsulated source view, is a full featured Windows editor. At the click of a mouse, you have full source code editing capabilities. When used in conjunction with the analysis tools and browsers, the editor becomes a highly effective way to maintain source code.

The Integrated Editor and the Split Screen Editor are the same tool except for the New File option that appears in the Integrated Editor. The New File option opens a new work space for editing. The Split Screen Editor appears in an encapsulated view within tools and browsers to allow the user to analyze items in the information window simultaneously while viewing and editing the item's source code. The Integrated Editor appears in standard window size to allow for extensive editing. Because their features are so similar, the term Integrated Editor will apply to both unless otherwise specified. The Integrated Editor is invoked with the speed menu or the Tools menu. To access it from the speed menu, right-click on an item in the information window, select Tools from the speed menu, and choose Integrated Editor from the sub menu.

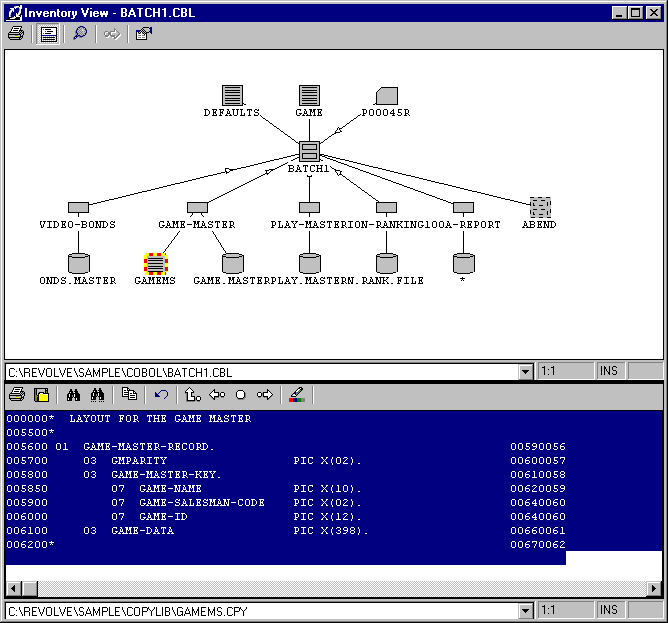

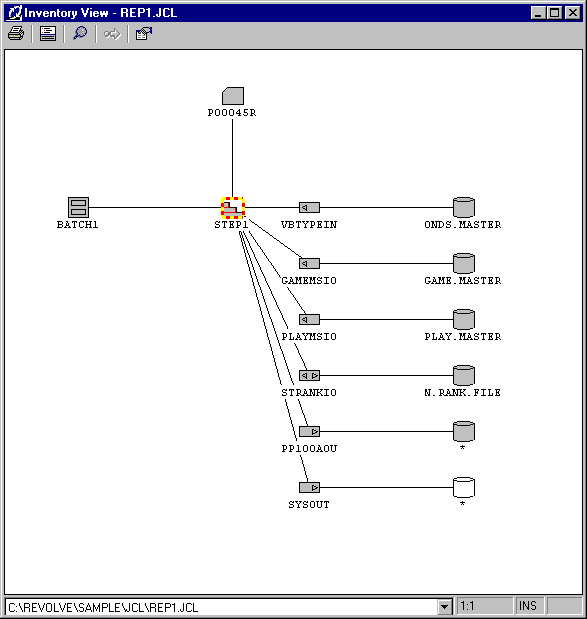

The Split Screen Editor is invoked in any tool or browser by selecting an item in the information window and clicking View Source Code.

4.2.1 Editing Source Code

To edit source code in the Integrated Editor position the cursor to the insertion point of an edit and begin typing. The Backspace key and the Delete key will delete text respectively backward and forward from the cursor. The arrow keys can move you right, left, up, or down.

There are two methods of selecting source in the editor: the mouse or the keyboard. With the mouse, click and drag the cursor over the text to be selected. Use the keyboard to horizontally select text by holding down the Shift key and pressing the left and right arrow keys. The Shift key and the up and down arrow keys select text from the cursor to the line above or below the current position. The Shift key plus the Home or End keys selects text from the beginning (far-left) of a line to its end (far-right). Additionally, when an item is selected in the information window, its source code is selected in the split screen editing window.

To delete blocks of source in the editor, select the undesired text, hold down the Ctrl key, and press the Delete key. To undo the last edit, delete, or movement made in the Integrated Editor, hold down the Shift key and press the Backspace key or click Undo selection.

4.2.2 Moving Text

The Integrated Editor enables you to move blocks of text in your source code to the Windows clipboard. The following list describes the features provided for moving text:

4.2.3 Searching and Replacing

In addition to the source editing features described above, the Integrated Editor enables you to scan entire source files with the Search and Replace features. This is important to your source code editing because you can perform the following procedures:

The Search and Replace dialog box enables you to specify a source code object and locate it in the source code. The Repeat Last Search feature enables you to advance to the next occurrence of the object. When you click Ok the modification is applied to the next object in relation to the cursor position.

4.2.4 Moving Through Source Code

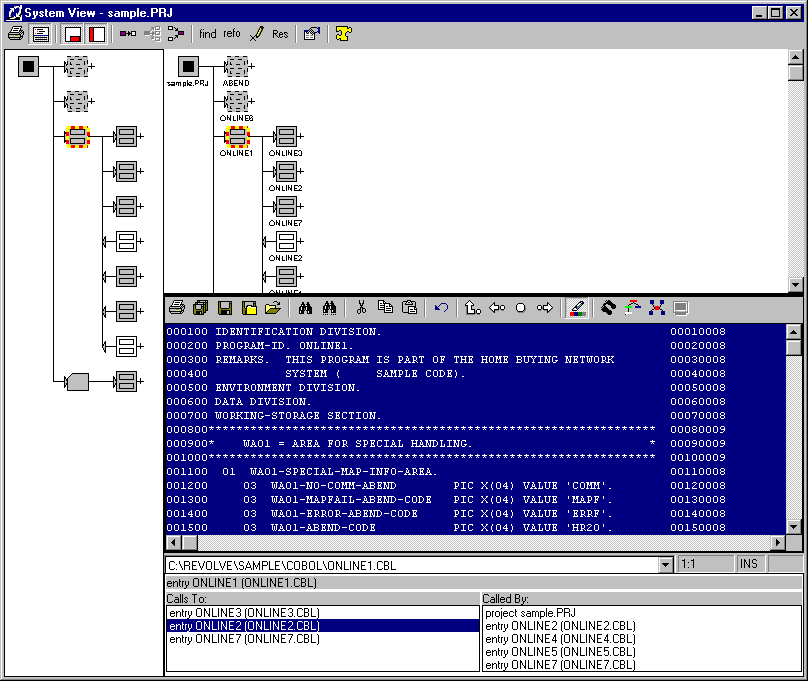

When View Source Code is clicked, the information window is split to make room for the encapsulated Split Screen Editor. The source code that is selected in the editor window corresponds to the item selected in the information window. When another item is selected up top, the Split Screen Editor will display the correct source code down below.

Within the editing windows you have the ability to move freely through the source code, viewing and making modifications. There are several features specific to mobility through source code files in the Integrated Editor.

4.2.5 Saving and Loading in the Integrated Editor

The Integrated Editor enables you to save and load source files. The Save all Modifications feature saves all your changes to the database. The Save to File feature saves modifications to the current source file. The Save as File feature opens the Save As dialog, so you can specify a new name and location for the source file. The Load from File button opens the Open dialog to load files into the editor.

4.2.6 The Status Bar

The Status Bar displays file names of accessed items in a drop down list box format. You can view the current file's name and access previous files by selecting preferred file names from the drop down list. The current cursor location and file status are also displayed.

4.2.7 Integrated Editor Views

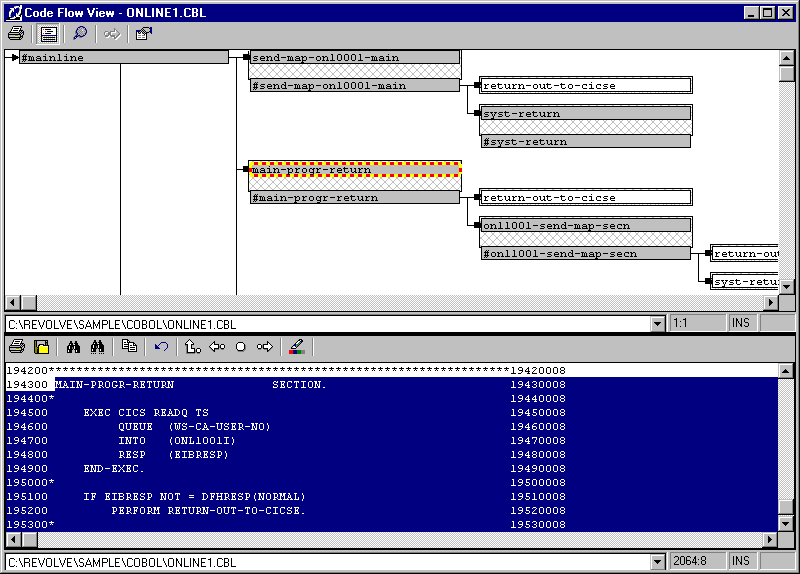

Three views can be invoked inside the Integrated Editor: the Code Flow view , the Screen view , and the Inventory view . Each of these views are available for applicable source components. When a source file component has an accompanying view, its button is enabled on the tool bar. Refer to the section on Views for more details.

4.2.8 Execution Simulator

The Execution Simulator is available from the Integrated Editor. The Execution Simulator enables you to do perform several tasks. You can:

A simulation is started at any statement in a COBOL program. Select the statement and click Run. The following features are available for you to apply to the walk through.

Click This:
To Do This:

Capture Results...:

Invokes the Capture Results dialog.

Step True/Into:

Advances the simulation to the next statement, processes the true branch of a conditional statement, or processes statements inside of a PERFORM or CALL statement depending on the context.

Step False/Over/Error:

Processes the false branch of a conditional statement or skips the simulation of the statements inside of a branch statement depending on their context.

Run:

Initiates and halts the automatic simulation process. You are prompted when a conditional statement is encountered to verify the procedure.

Backtrack:

Undoes the previous step.

Reset:

Resets the simulation to the starting statement and clears the path and effected variables.

Direction:

Sets the direction of the simulation forwards or backwards.

Options:

Displays the Execution Simulator Options. The stepping speed is set in this dialog. You control the display of the Execution Path here also.

Clear Highlights

Removes highlighting from source code.

4.3 Metrics

The Metrics tool calculates four statistical measures of complexity:

To change from one mode to another, use Metrics Options. After you select a new mode, the analysis is automatically performed when you click OK. The Metrics tool is set to Halstead by default. To change the default mode go to the Utilities menu and choose Tools > Views. Click the Metrics tab to change the settings that are used when the Metrics tool starts its analysis.

The Halstead metric mode uses four numbers to calculate the estimated length of each program. These numbers are the total number of operator occurrences (N1), the total number of operand occurrences (N2), the number of distinct operators (n1), and the number of distinct operands (n2). With these numbers, Halstead estimates the program length to be:

N=N1 + N2

The volume to be:

V=N log2 (n1 + n2)

The McCabe metric mode calculates the cyclomatic, extended, and essential complexity of each paragraph and program. These numbers represent the number of logical paths through the source code.

The McClure metric mode calculates complexity for each paragraph and program as the number of conditionals plus the number of unique operands used in the conditionals.

Statistics metrics mode displays the number of lines and statements in each paragraph and program.

4.4 Function Point Analysis

The implementation of Function Point Analysis is based on the International Function Point Users Group's (IFPUG's) 3.4 function point analysis definition.


Note: It is recommended that the Complete Project feature be used to provide any missing information prior to opening the Function Point Analysis tool.


Use the Function Point Analysis tool to measure the complexity of your project. Function Point Analysis first identifies and organizes the system's business functions into five groups:

  1. Inquiries

  2. Inputs

  3. Outputs

  4. ILF

  5. EIF


Note: FPA classifies screen accesses as either inputs or outputs. Data files are classified as ILF (Internal Logical File) or EIF (External Interface File). The distinction is made in that ILF's are written to and EIF's are not.


Then each business function is classified and weighed by its level of complexity (low, average, or high). Finally, the numbers are totalled to establish the complexity of your project. The higher the total is the more complex the project is. The evaluation process can be viewed in the Function Point Analysis window.

4.4.1 Complexity Factors

The FPA Options enable you to define weighting factors that adjust the parameters of the Function Point Analysis. A numerical value is determined based on the designated weight of each function where 0 represents no influence and 5 represents strong influence. The defaults for this dialog are changed with the Complexity Factors option on the Utilities > Tools/Views > Function Point Analysis tab.

4.4.2 File Types

The Classifications feature opens the File Types dialog box which allows for file types to be specifically identified. By selecting an item and clicking the specific button, elements can be designated as inquiries, inputs, outputs, ILF, or EIF. If an element is unused it can be tagged unused.

4.5 Annotation

The Annotation tool allows persistent documents or notes to be created that contain references to elements of source code as well as user-defined information about those elements. Annotations are useful:

Using annotations is an excellent way to document source code changes as well as performing project management tasks. Use the Annotation tool to manage, research, create, or delete annotations. Each annotation includes a title, description, status, and list of related elements. These documents or notes will exist within a Revolve project until they are explicitly deleted. The Annotation tool is accessed from the Tools menu or from the speed menu.

The Annotation tool locates annotations based on certain parameters defined in the Edit Annotation dialog. Use the pull down list box to select the Edit Annotation field that is to be used to find a specific annotation. Enter the name or naming convention in the Match edit field and click Match. Annotations that match the criteria are displayed in the information window.

When you add elements to an annotation, you may or may not add them in the order they occur in the source. To organize your annotations, use the Sort function. It orders connected elements in two ways.

Sorting elements according to the order they were added preserves any existing process used to create the annotation. Sorting by location in the source file enables you to order connected elements by their occurrence in the source code. Especially useful when you want to organize elements that were randomly added to the annotation. After clicking Sort, click Refresh, and then expand the connected elements folder to view the changes.

4.5.1 Editing Annotations

The Edit Annotation dialog is invoked with Edit Annotation.

The following information is available for each annotation:

Field:
Definition:

Title:

Names the annotation.

Date:

Indicates date the annotation was created. This field can not be changed.

By:

Displays name assigned to the person who created the annotation. The default user name is taken from the value specified in the User Name field of the Utilities > Options... User tab.

Status:

Monitors the status of annotations that are used for source code changes.

To:

Identifies the intended recipient.

Description:

Describes the annotation. Descriptions should be limited to 8,000 bytes (8K).

Associated Elements:

Lists the other elements that are associated with this annotation. This is a concise way of associating related elements to a single annotation. Elements for this list can be selected by using tools, views, and information browsers. To add all currently highlighted elements, press the Add Highlighted button. To delete an element, select the element in the Associated Elements list and press the Remove button.

Element Description:

Describes selected elements. Each element in the Associated Elements list can have an optional description associated with it. As the current selection in the Associated Element list is changed, the Element Description is updated with the corresponding description.

To save changes to the annotation, click OK. To cancel changes, click Cancel.

4.5.2 Adding Information to Annotations

Information can be added to annotations from the Annotation tool or with Capture Results. If an annotation is currently being edited in an Edit Annotation window, the elements are added to that annotation, otherwise the Add element to annotation window is displayed. This enables you to create a new annotation or lookup an existing one.

4.5.3 Annotations in Shareable Projects

Annotations in shareable projects have two classifications:

When you create an annotation in a shareable project it is Public by default. To move it to Private:

  1. Open the shared project.

  2. Select Annotations from the Tools menu.

  3. Locate the annotation.

  4. With the annotation selected, click Move to Private.

To make it Public again click Move to Public. If these buttons are not displayed in the Annotation tool, then close and restart Revolve. A single annotation cannot be both public and private simultaneously.

Public annotations are stored by default in the same directory where the project file is stored (.prj). The location is changed on the Project tab, accessed with Utilities > Options.... Note that this directory must be accessible to all users of a project. Private annotations are stored according to the setting of the Private Annotation Directories setting on the Directories tab. We recommend that the Private and Public annotation directories be different.

4.6 Scripts

The Scripts tool enables you to automate specific tasks in Revolve. Scripts are organized according to their general purpose in project analysis and operation. They are categorized as follows:

Expand each folder to view the scripts it contains. To run a script, select it and click Run. Often specific project components must be selected for a script to execute its designed function. The Choose Components dialog box enables you to assign a scope to the script, applying the scripting procedure to selected project items.

4.6.1 Cross Reference Reports

Cross Reference Batch Files with Records and Copybooks

Shows records used in I-O against batch files and the copybooks containing the record layouts. Records moved to or from I-O records are included in the record list.

Cross Reference CICS Datasets with Records and Copybooks

Shows records used in I-O for CICS datasets and copybooks containing the record layouts. Records to which I-O records are moved are included in the record list for a dataset.

Cross Reference Files by PLI Procedure

Shows files accessed by their procedure.

Cross Reference Files by Program

Shows files accessed by programs. Records displayed for program/file are records READ INTO or WRITTEN - REWRITTEN FROM, as well as the data record defined in the File Definition (FD).

Cross Reference PLI Procedures by Files Accessed

Shows procedures accessing files by file.

Cross Reference Programs by Files Accessed

Shows programs accessing files by file.

List data files written to by JCL job

Shows data files in your project that are written to by JCL job executed programs.

4.6.2 Data Rationalization

Homonym Analysis

Finds variables whose names are the same but whose PIC clauses define different types or sizes.

4.6.3 Parsing Problems

List Errors

Reports on parser-generated errors in user-specified project components.

List Errors and Warnings

Reports on parser-generated errors and warnings in user-specified project components.

List Errors, Warnings, and Notices

Returns all discrepancies discovered during project parsing.

List Files Not Found During Parsing

Reports on parser-generated file-not-found warnings in user-specified project components. File-not-found warnings are most likely copybooks or proclibs that have not been added to the project before parsing.

List Notices

Reports on the notices that occur during the loading process. Notices are the least severe of the parser-generated problems.

List Syntax Warnings

Reports on parser-generated syntax warnings in user-specified project components.

List Warnings

Reports on parser-generated Warnings in user-specified project components.

Show Duplicate Definitions by type

Shows all modules by type that have been added to the Project Manager where duplicate names exist in multiple directories. This script is designed to show invalid conditions that exist in the source code, so that problems can be resolved.

Show load modules without source and what invokes them

Shows programs in your project that do not contain source code and other load modules that are effected. Results are organized according to the source-less programs and the effected programs.

4.6.4 Project Management

The Project Management scripts are provided as templates that you can customize to automate some of your common administrative tasks. Select a script and click View Source Code to view its source. These templates are working scripts that you can actually execute if your directory structure adheres to that used in the script and if the sample source code that was included in the installation is located in c:\revolve\sample.

Customize these scripts according to your project needs. You can review the source and replace existing parameters with some of your project's parameters. For example, in the Template for creating a new project by explicitly adding sources, substitute the existing paths with your system paths and file names. Once you are satisfied with the settings, save the script. Then click Compile. Once the script has compiled it's ready to be Run. For information on language constructs and functions specific to project administration, see Automating Project Management

Template for creating a new project by explicitly adding sources

Customize this script to create a new project and add components. Substitute existing settings with your system parameters.

Template for creating a new project using search paths

Customize this script to set up search directories for your project, where Revolve loads components of specified types from specified directories. These search directories are referenced for subsequent Makes and updates. Substitute existing settings with your system and project parameters.

Template for performing a batch update on a project

Customize this script to automate project Makes. Substitute existing settings with your project's parameters.

4.6.5 Record Analysis

Copybook List Sorted by Name

Opens a Choose dialog that displays all the copybooks referenced in the project. Select a copybook or copybooks (Ctrl key and left mouse button) and click OK. The script describes all variables referenced in the copybook(s) and their attributes.

If nothing is returned for a selected copybook, check to see if the copybook is loaded properly. An easy way to find problem files is with the Parsing Problems scripts.

Group I-O records by size

Reports on I-O Records. Records are 01 level input/output records.

Group Secondary (non-I-O) Records by Size

Reports on non-I-O records. Records cannot be input or output (exclude all records defined in Comm Area, FD, and Linkage sections) and must be 01 group level data elements.

I-O Record Grouping

Groups IO records by size/name.

Secondary Record Grouping

Groups secondary (non-I-O) records by size/name.

4.6.6 Standards Checking

Hard-Coded Literals by Program

Reports on usage of hard-coded literals by program.

Indentation Checking

Identifies program source that violates the following indentation rule:

MOVE Statements that Truncate Data Elements

Reports on MOVE statements that result in truncation. Truncation is a result of data elements being moved from a field of a certain size to one of smaller size.

Multiple MFS files with same FMT name

Returns MFS screen files that have duplicate FMT names.

Multiple copybook files with same name

Returns a list of copybooks in the project with duplicate names.

Nested IF Statements

Determines greatest number levels of nested IF statements within the selected programs. Reports on and highlights all IF statements exceeding user specified maximum.

Redefines Length Mismatches

Reports on variable redefines, for which the redefining and redefined variables are of different lengths.

Report COBOL members with mismatched PROGRAM-IDs

Generates a report of all COBOL programs whose program IDs differ from their member names. The discrepancy between program IDs and their member names may cause problems in other scripts, resulting in programs being out of order and duplicated in output reports. This script exposes such occurrences.

Report PL/I members with mismatched PROGRAM-IDs

Generates a report of all PL/I programs whose program IDs differ from their member names. The discrepancy between program IDs and their member names may cause problems in other scripts, resulting in programs being out of order and duplicated in output reports. This script exposes such occurrences.

Variable Names Exceeding Threshold

Reports on Variable Names whose length exceed a user defined maximum within the selected programs.

4.6.7 Unused Analysis

Copybooks with no Referenced Variables

Reports on copybooks included in programs whose variable definitions are not referenced or whose procedural logic is not executed.

Unused Paragraphs

Reports on paragraphs whose statements are not executed.

Unused Procedural Logic

Reports on the unused procedural logic within the program selected in the Choose dialog.

Unused Program Variables

Provides information about variables that are not explicitly used in the loaded project. Please note that some returned fields may not be removed from the project because they are part of redefines, structure definitions, or copybook members that cannot be modified.

4.6.8 Utilities

Copy source files to drive/directory

Invokes a Choose Components dialog where you need to specify the source file that needs to be copied to another location. Click OK. In the Prompt dialog enter the path to the drive or directory where the files should be copied.

Count lines Logical & Physical

Counts logical and physical line numbers for all project members. It will generate four columns:

Column
Indicates

Module Name:

Specifies the project module's name.

Logical:

Refers to the total number of lines in a member, including imported elements (copybooks, procs, etc.).

Physical:

Refers to the actual line count in the member. Imported elements (copybooks, procs, etc.) are not included.

Imports:

Lists the numbers of lines brought into the member through imported elements (copybooks, procs, etc.).

Generate a Script to Rebuild the Import Translations

Allows you to utilize the import translations of one project in another one that requires the same translations. The default name and location of the script that is generated is C:\buildimp.rqs. When you use the script Rebuild Import Translations it will ask you for the compiled version of this file (.rqc).

Generate a script to rebuild the project

Creates a script that is used to rebuild the active project (including Complete Project and Copybook Translation information).

Open screens used by the component w/ selected

Opens Screen views associated with the selected item. To select a project component, right-click on it in a Revolve information window and choose Select from the speed menu. The selected component's name is displayed at the bottom of the Revolve desktop.

Print the text content of the selected item

If the selected item is a paragraph, printing the "text content" of a paragraph will print the whole paragraph.

Remove Load Modules and PSBs in IMS GEN that are not referenced.

IF your IMS GEN has load modules and PDBs that are not referenced then this script will remove them.

Remove load modules in CSD report that not referenced.

IF your CSD report has load modules that are not referenced, then this script will remove them.

4.7 Impact Analysis

Impacts occur when data elements refer or relate to one another in a project through moves, redefines, conditionals, arithmetic operations, group relations, parameter passing, copybooks, references to files, and references to screens. When one item is changed in an application, it can effect other items, causing inconsistencies and even system failure.

The threat of data impacts poses a major problem when you consider the task of system maintenance and specifically making source code modifications. For example, if you modify just one data item, it might impact many different source components in many different areas of your system. To guarantee source code integrity, the Impact Analysis features enable you identify all locations in your system where specific data elements have impacts. Once you've located the impacts, you can modify source code accordingly to alleviate impact problems that may arise when you apply modifications to your actual system. The benefits of using Impact Analysis are:

We recommend that the Complete Project dialog be used to provide Revolve with any missing information before the Impact Analysis tool is opened. The Complete Project feature is invoked from the Project menu.

The first step in impact analysis is to identify the data elements that are to be considered impact candidates. These impact candidates are used as starting points. After a list of starting points is defined, you should use the Impact Options dialog box to set the options for the impact trace. Impact tracing is the process where impacts are identified in your project. When you create a list of starting points and your impact options are set, you are ready to trace impacts. When you initiate the impact trace, Impact Analysis traces each starting point according to your options and returns all the impact information that it finds in the project. Use the results of the impact trace to tailor your modifications for safe and effective implementation of modifications.

4.7.1 Defining Starting Points

The first step in impact analysis is to define a list of data elements that may be impacted or cause impacts. This list of impact candidates is used as the starting point for the impact trace. A starting point can be any data element that is scheduled to be or has been modified or edited. Also, a starting point must be located in a loaded, up-to-date project file.

The Impact Analysis tool locates and loads starting points according to the naming criteria you specify in the Match edit field. Specify an element's exact name or use wildcards to define naming patterns for many elements that use similar naming conventions.

Starting points must be classified as variables, BMS or MFS fields, literals, data files, or SQL columns. The status bar contains a pull down list box that enables you to specify the type of file. For example, to load all project variables whose names begin with WS, select Variable from the pull-down list box, enter WS* into the Match edit field, and click Match. The Impact Analysis information window fills with all project variables with names like WS-ABEND-MSG or WS-KEY.

When you click the Match button, Impact Analysis searches the project database and identifies all source components that comply with your name and type criteria. Matched components are displayed in the information window. These are your starting points for impact tracing. The total number of starting points is displayed on the status bar. Impact Analysis for the Assembler Extension uses variables as starting points and traces through direct variable manipulations in MOVE statements.

4.7.2 Refining Impact Candidate List

When you have a list of starting points that are considered impact candidates, you can edit, remove, or exclude items based on your analysis needs.

4.7.3 Setting Impact Tracing Options

In a large, complicated project, it is essential that you be able to control the direction and flow of the impact trace. Otherwise, you would be sifting through unneeded and unimportant impact trace information. The Tracing tab on the Impact Analysis Options dialog enables you to define the parameters for tracing impacts from your starting points through the project. There are two categories of options: Impact Through and Prune.

Impact Through

The Impact Through options enable you to configure the impact trace to return specific information on impacts occurring in certain project modules. You direct the path of impact tracing through source code components, like conditions, literals, arithmetics, copybooks, data files and executables. With this control you can trace impacts through points of interest as well as known problem areas in your source code.

Prune

The Prune options enable you to cut unnecessary data out of the impact trace results. For example, some source code constructs may seem to be impacts when really they aren't, or they do not actually cause significant impacts because of several kinds of buffers, suspect literals or executables. With the Prune options, unimportant and irrelevant information can be removed from the impact trace results.

The Prune options are:

4.7.4 Performing the Impact Trace

After you are satisfied with your impact candidates and tracing options you're ready to perform the impact trace. Impact tracing begins at each starting point in the source code and traces through each element encountered. Along the way impacts with other project elements are determined, identified, and returned in the results.

To initiate impact tracing, click Impact Tracing. By default, the Impact Analysis tool displays all results by name. You can change the display of impact information. See Display Options.

4.7.5 Examining the Results

Once you have performed an impact trace, expand the displayed folders to view the chain of events that led to each impact. The trace chain of events are displayed as leaves . Each leaf details a step in the data movement leading up to the impact of an item with the impact candidate.

During impact tracing the Impact Analysis tool analyzes data for all project entities that are affected when the variable, BMS field, or MFS field is modified. Impacts are categorized into the following types:

4.7.6 Display Options

The Impact Analysis tool gives you various modes in which to view the results of an impact trace. Click Options... and click the Display tab. The options provided enable you to have complete control over the display of the impact trace results. It is important to pay attention to the starting points that you use to identify impacts. Your results can be displayed according to those starting points or by the items that are impacted.

4.7.7 Saving Impact Analysis Results

The Impact Analysis tool enables you to save the results of an impact trace. The impact analysis is saved to a location that you define in the Save dialog box that is invoked when you click Save Impact Analysis. The file is given an .IA extension. To open the impact analysis file later, click Load Impact Analysis.

4.8 Report Analysis

The Report Analysis tool enables you to load compiled scripts into a browser-type interface in order to perform specific script-based queries on your project. Results are based on the criteria you type into the Match edit field. Compiled scripts must have an extension of .RQC. Contact MERANT to obtain compiled scripts supported by this interface.

4.9 Views

Views create various graphical representations of the applications that comprise your system. These illustrations are overviews of how your system components are related to one another and the

4.9.1 System

The System view provides a graphical depiction of the relationships between entities (JCL jobs, COBOL programs, data files, etc.) in a project. In addition to the graphical icons, detailed information about each relationship is also provided.

Revolve uses the default options found under the Utilities > Tools/Views option when opening a System view. Once a System view has been opened the options can only be modified through the System View Options dialog, invoked with the Options button on the tool bar.

For a description of the icons used in the System view choose the Print button from the System view tool bar. Then check the Legend check box. Your hard copy will be preceded by descriptions of the icons used in the view.

By default icons are shaded gray but clear icons may also appear. Clear or unshaded icons indicate that an element has duplicate icons in the graph. There will be only one shaded icon for each element in the source code. It is this icon which will be expanded to other elements. Icons which appear segmented symbolize a program entry point.



Figure 4-1: The System View

We recommend that the Complete Project dialog be used to provide Revolve with any missing information before the System view is opened. The Complete Project feature is invoked from the Project menu.

4.9.2 Job Stream

The Job Stream view enables you to view JCL Job stream files (.str) as graphical illustrations. Job streams contain the execution sequence for JCL Jobs in your system. In the Job Stream view, JCL Jobs are displayed in the order they are executed. The exclusion and dependency relationships between the JCL Jobs are also shown.

If you have access to the CA-7 scheduling product on your mainframe then you can use the LJOB command to generate a job schedule report. This report can be converted to a stream file (.str) that is supported by Revolve and is accessed for analysis in the Job Stream view. See the online Help for more information on this feature.

4.9.3 Inventory

The Inventory view creates a complete graphical view of a program or JOB, including all of their related entities.


Note: It is recommended that the Complete Project dialog box be used to provide Revolve with any missing information before the Inventory view is opened.


4.9.3.1 Open Inventory

When the Inventory view is invoked from the Tools menu, an Open Inventory dialog appears. To find a specific program, enter the program name into the Match edit box and click Match. Or use the list to find and select multiple programs for display in the view. The Select All button selects all of the items in the list and opens Inventory views for each program.

4.9.3.2 Inventory-COBOL

The Inventory for COBOL programs shows the main program, copybooks/includes, files, databases, screens, programs called, and entities invoking the main program.



Figure 4-2: Inventory View for COBOL File

4.9.3.3 Inventory-JCL

The JCL/ECL inventory represents the job/run, steps, devices/files, executables, and DD statements.



Figure 4-3: Inventory View for JCL

Depending on the DISP parameter of a DD statement, Revolve will place an arrow inside the DD icon indicating the usage of the data set.

Floating text enables you to see the full name of the elements the mouse passes over. You can disable the pop up text on the Utilities >Options... >User tab.

4.9.4 Code Flow

The Code Flow view displays a flow chart that illustrates the calling hierarchy of the paragraphs and sections in a COBOL program or entry point. The flow chart shows GO TO statements, PERFORM statements, CICS error handlers and fall throughs in relation to the paragraphs and sections in the program.

4.9.4.1 Open Code Flow

When the Code Flow view is invoked from the Tools menu, an Open Code Flow dialog appears. To find a specific program, enter the program name into the Match edit box and click Match . Or use the list to find and select multiple programs for display in the Code Flow view. The Select All button selects all of the items in the scroll-able list and opens Code Flow views for each program.

Please note that one Code Flow view is opened for each program that you select in the Open Code Flow dialog box. If you click Select All and there are a large number of programs in your project, then it may take considerable time for Revolve to create all of the appropriate Code Flow illustrations. If your project consists of many programs, we recommend that you specify the pertinent ones rather than clicking Select All.



Figure 4-4: Code Flow View for COBOL File

Revolve uses the default options on the Utilities > Tools/Views options page, when opening a Code Flow view. Once a Code Flow view has been opened, the options can be changed from the Code Flow Options dialog, invoked by clicking Options . The Overview Panel displays the entire file's code flow. If there are multiple occurrences of the selected component in the program, then Next Usage is enabled. When clicked, it displays the next usage of the selected element.

4.9.4.2 Fall Throughs

Some COBOL programs allow execution to fall through the end of a paragraph into a new block of code. This will often result in flow charts that while accurate do not reflect the implied structure of the program. When the analysis is done to create the flow chart, the user can limit the number of times the system can fall through paragraphs that are also used to end a block of code. These paragraphs are referred to as "live" fall throughs because they are designated as exit paragraphs but under certain conditions they may fall through instead of returning. By limiting the number of "live" fall throughs with the Number of Live Fall Throughs option, the user can create a logical representation of the COBOL program.

4.9.4.3 Characters per Label

Code Flow Options enable you to allocate the number of characters displayed in each label. This enables you to customize the display. The number of characters cannot be set to less than than five. Floating text enables you to see the full name of the elements the mouse passes over. You can disable the pop up text on the Utilities >Options... >User tab.

4.9.4.4 Display Error/Exception Branches

The Display Error/Exception Branches check box enables you to show or hide branches or exceptions that occur in a program (i.e. CICS handlers or ON ERROR clauses).

The Code Flow Options dialog enables you to set the number of live fall throughs in a system, to allocate the number of characters displayed in each label, and to specify the display of error/exception branches that occur.

4.9.4.5 Labeling

Revolve expects there to be at least one section per COBOL program and one paragraph per section. If these are not explicitly labeled, then they are implied in the database. Programs that do not start with a section label or sections that do not start with a paragraph label appear in the flow charts with names that begin with a "#". For implied paragraphs, the names are derived by taking the name of the section containing the implied paragraph and prefixing it with a "#" character. For implied sections, the name is formed by prefixing the name of the program with a "#" character.

4.9.4.6 Symbols

The Code Flow view is a graphical way to view the components of a COBOL program. Interpretation can be difficult unless you understand the significance of the symbols used to create the code flow view.

4.9.5 Source

The Source view creates a logical view showing all the integrated files that comprise a module. For a COBOL program, the copybooks and include files are interleaved in the main source file. For JCL, a logical view that integrates all the proclibs with the main job is shown. The Source view displays the source code as it would appear in its source file format. The overview window runs along the right side of the view and provides a representation of the source file. The selected item's location appears as a horizontal bar in the overview window. Highlighted items will also be displayed in their appropriate color in the overview window.

4.9.5.1 Open Source

When the Source view is invoked from the Tools menu, an Open Source dialog appears. To find a specific source file, enter the file name into the Match edit box and click Match. Or use the list to find and select multiple files for display in the view. The Select All button selects all of the items in the scroll-able list and opens Source views for each file.

4.9.6 Data Structure

The Data Structure view illustrates the data hierarchy by displaying all the variables in a program, section, or group level.

4.9.6.1 Open Data Structure

When the Data Structure view is invoked from the Tools menu, an Open Data Structure dialog appears. To find a specific file, enter the file name into the Match edit box and click Match. Or use the list to find and select multiple files for display in the view. The Select All button selects all of the items in the scroll-able list and opens Data Structure views for each file.

4.9.7 Screen

The Screen view creates an image of the BMS or MFS screen as it would be displayed in a production system. Uninitialized fields are shown with "X"s, or "9"s if numeric.

4.9.7.1 Open Screen

When the Screen view is invoked from the Tools menu, an Open Screen dialog appears. To find a specific BMS or MFS file, enter the file name into the Match edit box and click Match. Or use the list to find and select multiple files for display in the view. The Select All button selects all of the items in the scroll-able list and opens Screen views for each file.

Floating text displays the names of the fields the mouse passes over. You can disable the pop up text on the Utilities > Options... > User tab.


Copyright © 2000 MERANT International Limited. All rights reserved.
This document and the proprietary marks and names used herein are protected by international law.

PreviousCreating and Managing Projects Browsing ProjectsNext
