Save a Filter, Saved Search, Dashboard Panel, or Search Results

Saved Search, Filter, Dashboard Panel or Search Result provides prompt access to predefined system filters, search results, and searches stored in the Search page. This tab will only display if the user has rights. For more information, see Users/Groups and Saved Search Alerts.

To save filter/ saved search

  1. Define a query as described in Searching for Events or Classic Search: Using the Advanced Search Builder.
    2. Tip: Queries with aggregation operators cannot be used in Saved Search / Alerts.
  2. Click the icon.
  3. Click the correspondent saving option tab:

    4. Saving Option

    Description

    Details Required

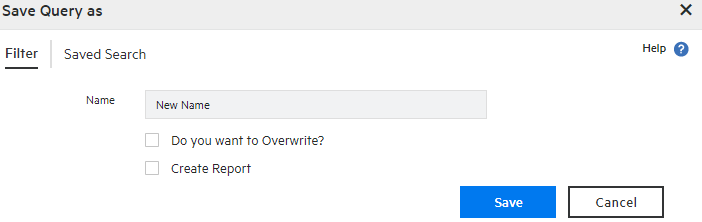

    Filter

    Saves queries without the time range.

    • Name
    • Create Report (optional)

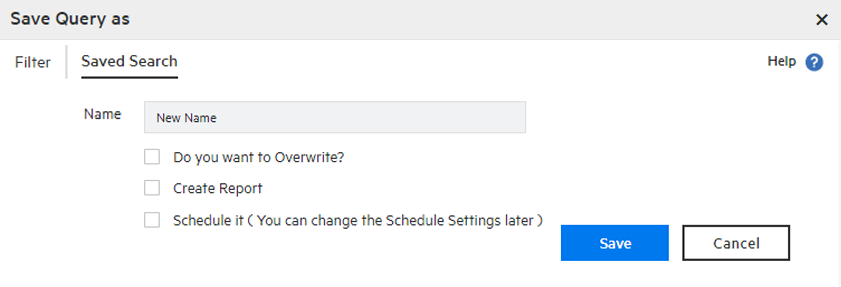

    Search

    Saves queries with a start and end time parameter and local only flag.

    You can later update your saved search to become a Schedule Alert or Schedule Search.

    • Name
    • Create Report (optional)
    • Schedule it
      Schedule Search:
    • Job Name Schedule, Saved Searches, export option (including the specific remote location), File Format, Export Directory Name, field options, and retention period.
      Schedule Alert:
    • Match count, Threshold, SNMP Destination, Syslog Destination, ESM Destination, TH Destination, and Email Address.

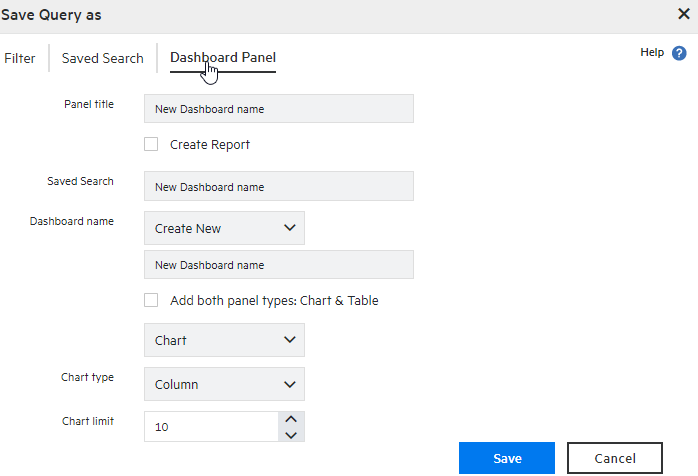

    Dashboard Panel

    Saves dashboards using a search query (with top, rare, or chart operators) that generates a chart.

    • Panel title
    • Create Report (optional)
    • Saved Search
    • Dashboard name
    • Panel type
    • Chart type
    • Chart Limit

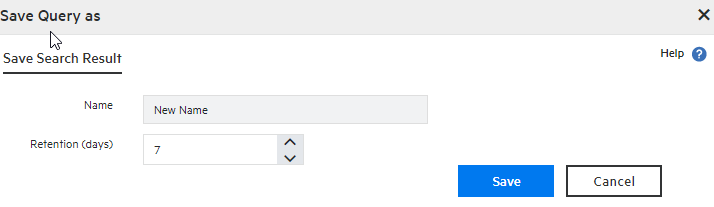

    Search Result

    Saves the results of a large search. For more information, see Persisting Search Results

    • Name
    • Retention

  4. You will need to select or add the parameters below based on the saving option you selected:

    Parameter

    Action required

    Name

    Type a name.

    Overwrite name

    To overwrite the name, check the following box.

    Note: This option is not available for search results.

    Schedule it

    Select Schedule Search to add any existent saved search.

    OR

    Select Schedule Alert to add only the saved searches you have created.

    Note: To include a scheduled alert with a TH destination, refer to Adding a Scheduled Search or Scheduled Alert.

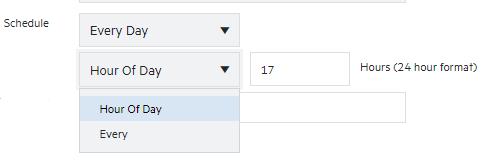

    Schedule

    Set an appropriate time to execute your search/ alert.

    Schedule your saved search Every Day or a specific Days of Week / Month.

    You can also specify an hour or every certain hour.

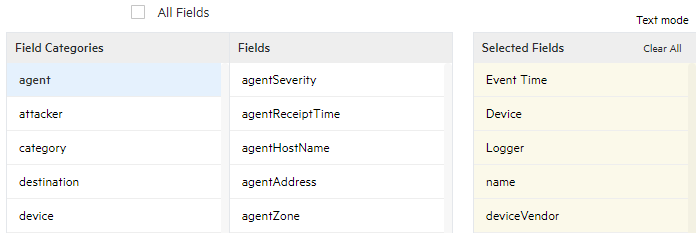

    All Fields

    By default, the save option includes all event fields.

    Click the All Fields box to drag and drop only the event fields needed in the selected fields column.

    You can also write the specific event fields in the saved search by clicking the Text mode link.

    Tip: The All Fields option is disabled when selecting a single saved search.

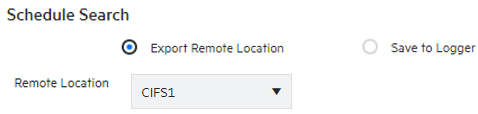

    Export Options

    Select Export Remote Location to store the file in a remote location.

    OR

    Select Save to Logger to store the file in Logger's local system.

    Dashboard name

    Select Create New and add the new Dashboard name

    OR

    Select a saved dashboard from the drop down list.

    Panel Types

    Select Chart

    OR

    Select Table

    To add both panel types, check the correspondent box:

    Chart Type

    Select the type of chart to include in the PDF file.

    Options available: Column, Bar, Donut, Area, Line, Stacked Column, Stacked Bar.

    Chart Result Limit

    Specify the number of unique values to plot. Default value is 10.

    Use the to set the limit as needed.

    If the Chart Result Limit is less than the number of unique values for a query, the top value will adhere to the limit plotted.

    File Format

    Select CSV to generate a comma-separated value file and create the Export Directory in your Logger.

    OR

    Select PDF to generate a report-style that contains the search results in tables and charts. Charts are only included if the search query contains an operator that creates charts.

    Once this option is selected, you need to add the directory name, PDF’s title name, Fields, Chart type, and Chart Result Limit before saving the schedule search.

    Export Directory Name

    Add the export directory name.

    Include Event Total

    Include the total number of events in the exported search results.

    Include only CEF Events

    Include the CEF events in the exported search results.

    Retention period

    Determine the retention period for the saved search or saved search result in Logger. After the period expires, the file is no longer available.

    Saved search:

    Saved search result:

  5. Click Save. A message acknowledging this action will be displayed.
