Choosing the Diagram View

The Program Control Flow pane offers two views of program control flows, a subgraph view and a subtree view. The figures below show the same paragraphs in both views.

Subgraph View

The subgraph view offers a cyclic representation of the information in the diagram. Items are drawn once. Relationship lines cross. Subgraph views are often easier to understand than subtree views. Click the GUID-A3D8F9FE-731B-4A87-AA8B-8955DB92C952-low.gif button on the toolbar at the bottom of the pane to select the subgraph view.


Subgraph View

Subtree View

The subtree view offers a linear representation of the information in the diagram. Items are drawn as many times as necessary. Relationship lines do not cross. Use this view if too many intersecting lines make a subgraph view hard to read. Click the GUID-E4F98CF4-5503-4191-8042-5FF8851CBF1D-low.gif button on the toolbar at the bottom of the pane to select the subgraph view.

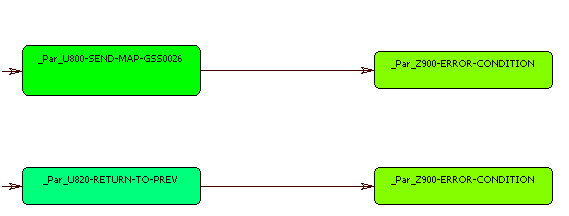

Subtree View
