Continuous Integration Workflow

The following diagram summarizes the key steps in a continuous integration process. Although the process comprises a number of different activities with integration provided between each activity, you do not have to adopt every activity in the process before you can benefit from significant gains in terms of efficiency, effectiveness, and quality. Instead, you might choose to implement this process one activity at a time, taking advantage of the benefits provided by each activity as you add and integrate it with the others.

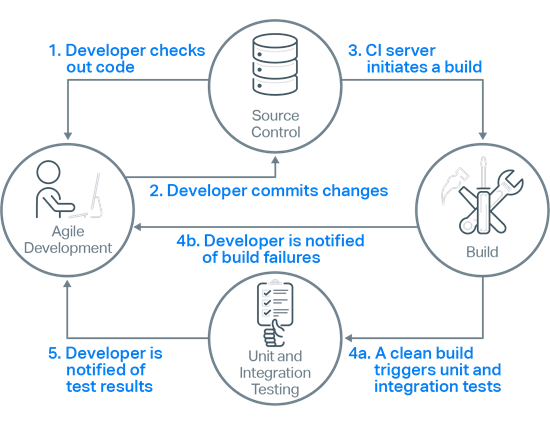

Key steps in a continuous integration process

where the numbered steps are as follows:

  1. Developers check out code into their private workspaces. They then make their changes and test them locally.
  2. When done, developers check in their changes into the source control repository.
  3. The CI server monitors the source control repository and when it detects a change it triggers a build of the relevant sources.
  4. After a successful build, the CI server performs some or all of the following activities:
    • makes deployable artefacts available for testing
    • assigns a build label to the version of the code that was just built
    • notifies the relevant team members that a successful build occurred
    • triggers unit and integration testing

    At this point, the changes that were checked in at step 2 have been successfully built and a build label has been applied to the source code that was used for the build, meaning that the build could be recreated if necessary.

    In the event of a build failure, the CI server sends notifications to the relevant developers who restart the process from step 1 to make the changes necessary to resolve the build errors.

  5. After the unit and integration testing has taken place, the relevant team members are notified of the test results.

    At this point, the changes that were checked in at step 2 have been successfully built and tested, all with little or no manual intervention.

For information on using Jenkins to perform the CI server tasks in the above list, see Using Enterprise Developer with Jenkins.
