MSS-to-MSS Example
Two MSS-enabled enterprise servers, PEERSRV1 and PEERSRV2, are to be connected using CCITCP. Two connection definitions are shown, although only one is required.
The connection definition for the first region is shown below.

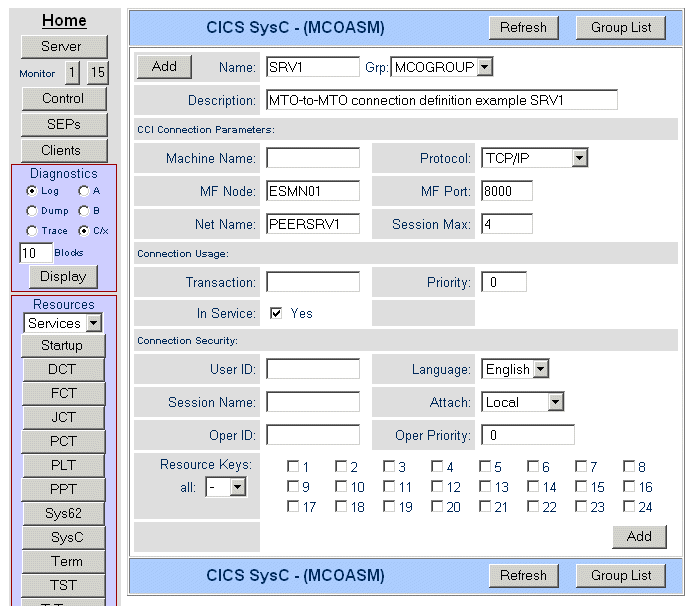

Figure 1. Example Connection Definition for PEERSRV1
The connection definition for the second region is shown below.

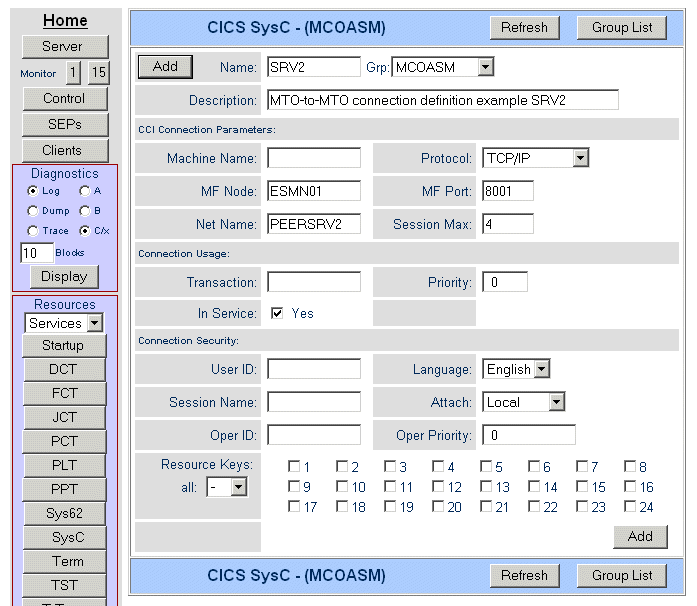

Figure 2. Example Connection Definition for PEERSRV2
