Search Result (Member)

This element type is used to model a PO member in the search result in which the text searched for was found.

The following figure shows how to model this element type:


MVS search member element type

You need an ID definition to describe the properties which uniquely identify an element of this type.

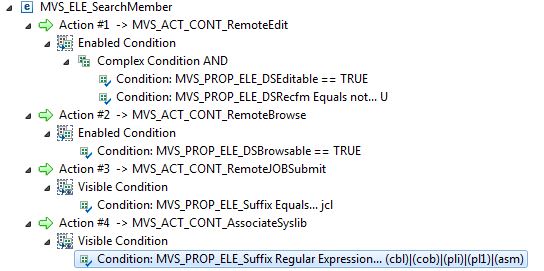

The icon is derived from the icon used in the MVS Explorer for a PO data set member. All actions have modeled enabled or visible conditions that have rules applied:


MVS search member element actions

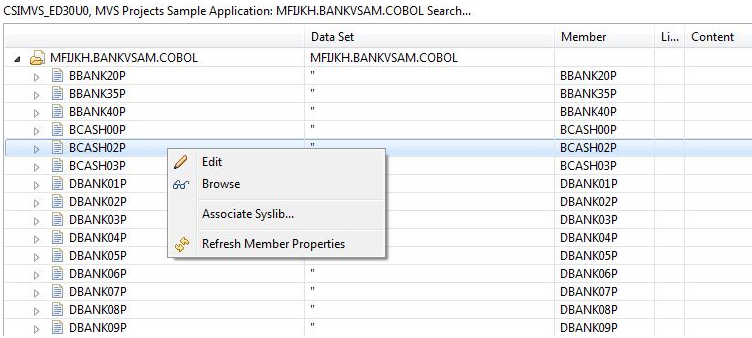

The match name SEARCHMEM must match the name returned by the REXX procedure TAUTOSRC which returns the result from an ISPF search utility. If the Search action on a partitioned data set is executed at run time, the member records are displayed as a tree table, see the figure below:


MVS sample application to search member type with results displayed in table results view
