Paint the BLDRCU Screen

Provides step-by-step instructions to create the BLDRCU screen using the AMB Screen Painter.
Restriction: This topic applies only when the AppMaster Builder AddPack has been installed, and applies only to Windows platforms.

To paint the BLDRCU (Parts Update) screen, you start the Screen Painter from the Project Explorer view, paint the text and entry fields, assign a field for system messages, paint a field to save the database key, and title the screen.

Note: Before you begin, review the tools and techniques described in the Screen Painter Basics topic, and use that topic as a reference as you work through the steps.

Start the Screen Painter

  1. In the Project Explorer, expand BLDRAPPL > BLDRUPD.
  2. Double-click the BLDRCU screen entry.

    This starts the Screen Painter in its default mode. To help you align screen fields, turn on the Screen Painter grid.

  3. From the Screen Painter toolbar, click Options > Show grid.

Paint static text fields

In this section, you draw, resize, and label all of the static text that serves as field labels on the BLDRCU screen.

Draw static text fields
Use the static text tool to drop static text fields onto the BLDRCU screen. Some of the static text fields serve as text labels for entry fields. Others serve as screen title labels. Use the Static Text Fields figure as your guide for this procedure.

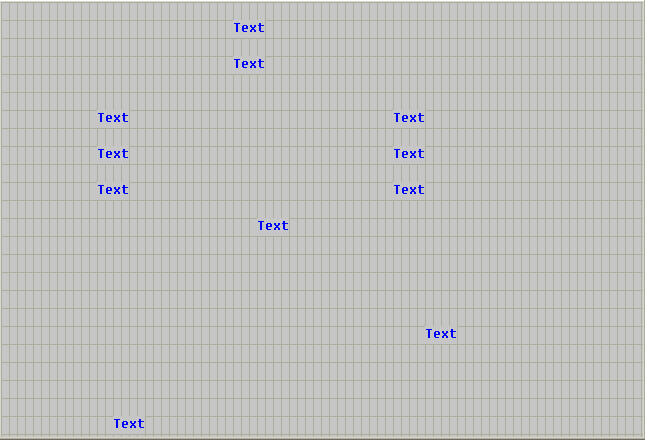

Figure 1. Static Text Fields
Static Text Fields
  1. To toggle sticky mode on, click Tools > Sticky Mode. When sticky mode is toggled on, the tool you select next stays active until you toggle sticky mode off or select another tool.
  2. Click Tools > Static Text, or Static Text Tool Static Text Tool. The mouse pointer changes to the static text tool.
  3. Using the Static Text Fields figure as your guide, position the tool on the top center area of the screen, where you want to paint the first screen title.
  4. Click to drop the field.
  5. Repeat steps 3 and 4 to drop the nine remaining static text fields. At this point, all fields read Text. Do not be concerned if the fields are not properly aligned.
  6. To toggle sticky mode off, click Tools > Sticky Mode.
Increase static text field sizes
Before you can assign descriptive text to these fields, you must first increase the size of each to accommodate the text. Use the Static Text Field Lengths table and the Labeled Static Text Fields figure as your guides for this procedure. While the table indicates the label for the fields, you do not actually put the labels onto the fields until the next section.
Table 1. Static Text Field Lengths
Static Text Field Label Length
AMB DEMONSTRATION SYSTEM 25
PARTS UPDATE SCREEN 20
FUNCTION: 10
(Q=QUERY, U=UPDATE, D=DELETE) 30
PART NUMBER: 13
DESCRIPTION: 13
UNITS: 7
BASE PRICE: 12
DIMENSIONS: 12
INVENTORY VALUE: 17
HIT F3 TO BYPASS FIELDS AND RETURN TO MAIN MENU SCREEN 55

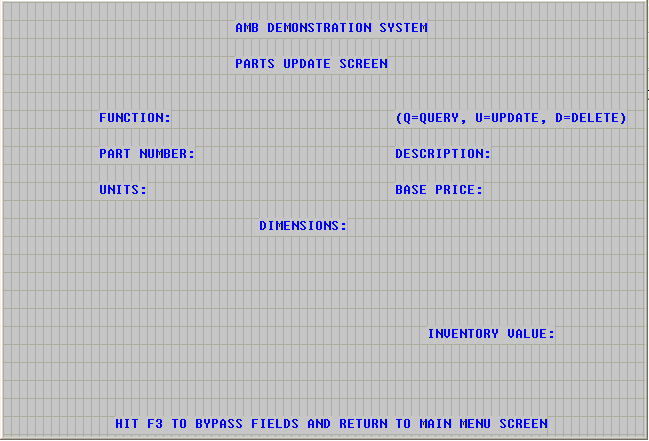

Figure 2. Labeled Static Text Fields
Labeled Static Text Fields
  1. First, activate the Tracking option. To do this, click Options > Show tracking. The bottom right field on the Screen Painter dialog box shows Track, indicating that tracking is active.
  2. On the BLDRCU screen, click the first screen title field, located at the top center. The anchor blocks appear. This field must accommodate the text AMB DEMONSTRATION SYSTEM, which is 24 characters in length.
  3. Move the mouse pointer to the right border of the field. The pointer changes to a double-sided arrow.
  4. Drag the border to the right until the LEN specification in the Screen Painter Tracking field reads LEN=24.
  5. Using the Static Text Field Lengths table and the Labeled Static Text Fields figure as your guides, repeat steps 2 through 4 for each text field.
Label static text fields
Next, label the fields with descriptive text. Use the Labeled Static Text Fields figure as your guide for this procedure.
  1. Double-click the AMB Demonstration System field on the top center of the screen. The Text Attributes dialog box appears.
  2. Highlight the word Text in the Text field, located on the top right column of the Text Attributes dialog box.
  3. Type AMB DEMONSTRATION SYSTEM to replace it.
  4. Click the check mark Screen Painter check mark to accept the change.
  5. Close the Text Attributes dialog box by clicking the x icon in the upper right corner.
  6. Using the Labeled Static Text Fields figure as your guide, repeat steps 1 through 5 for each static text field, substituting the appropriate label text in step 3.

Paint entry fields

In this section, you draw, resize, and assign attributes to all of the entry fields on the BLDRCU screen.

Draw entry fields
Use the Entryfield tool to drop entry fields onto the BLDRCU screen. Use the Entry Fields figure as your guide for this procedure.

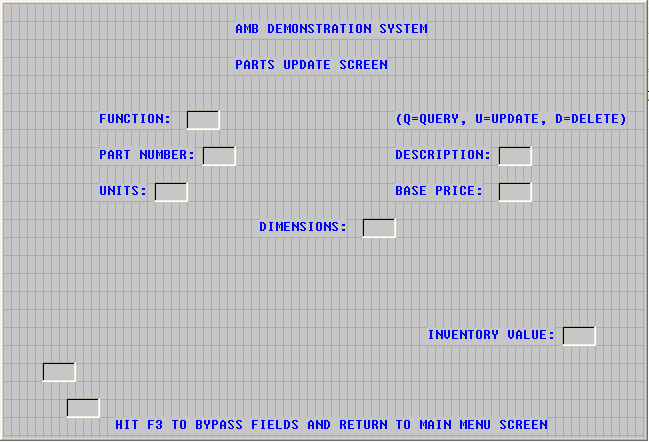

Figure 3. Entry Fields
Entry Fields
  1. To toggle sticky mode on, click Tools > Sticky Mode.
  2. Click Tools > Entryfield, or click Entryfield Entryfield Tool. The mouse pointer changes to the Entryfield tool.
  3. Position the tool to the right of the FUNCTION static text field.
  4. Click to drop the entry field.
  5. Using Figure 3 as your guide, position and drop the remaining entry fields. Do not be concerned if all fields are not aligned.
  6. To toggle sticky mode off, click Tools > Sticky Mode.
Resize entry fields
Because the Screen Painter default length for entry fields is 4, all of your entry fields are now four characters in length. You need to make them the size needed for data entry. Use the Entry Field Lengths table to determine field lengths.
Table 2. Entry Field Lengths
Field Length
Function 1
Part Number 8
Description 20
Units 2
Base Price 7
Dimensions 8
Inventory Value 12
Savekey (located below and to the left of the Dimensions field) 9
System Message (located below the Savekey field) 79
  1. Click the FUNCTION entry field. The anchor blocks appear.
  2. Move the mouse pointer to the right border of the field. The pointer changes to a double-sided arrow.
  3. Drag the border to the left until the LEN specification in the Screen Painter Tracking field reads LEN=1, and release the mouse.
  4. Repeat steps 1 through 3 for each entry field, dragging each border to the left or the right as necessary, using the Entry Field Lengths table to determine field lengths.
  5. Now is a good time to save your work. Click File > Save.
Assign field attributes to DATA fields
  1. Double-click the entry field next to the FUNCTION text field. The Field Attributes dialog box appears.
  2. In the Name field, change DATA1 to function.
  3. Check Cursor. This positions the cursor in the Function field when you run the application.
  4. Click the check mark Screen Painter check mark to accept the change.
  5. Close the Field Attributes dialog box.
  6. Repeat steps 1, 2, 4, and 5 once for each remaining entry field, using the following table to determine field names.

    For the field with this label . . .

    Change DATAx1 to . . .

    FUNCTION:

    function

    PART NUMBER:

    part-nbr

    DESCRIPTION:

    short-desc

    UNITS:

    units-instock

    BASE PRICE:

    base-price

    DIMENSIONS:

    dimensions

    INVENTORY VALUE:

    inv-value

    1 x represents the number generated for the default name of the field.
Assign attributes to the Savekey field
  1. Double-click the Savekey field.
  2. In the Name field, change DATAx to savekey.
  3. Check Protected. This prohibits the end user from entering data.
  4. From the Intensity drop-down list, click Dark. This changes the field from normal intensity to dark (hidden) so that the field does not display on the screen that the end user sees.
  5. Click the check mark Screen Painter check mark to accept the changes.
  6. Close the Field Attributes dialog box.
Assign attributes to the System Message field
  1. Double-click the System Message field.
  2. In the Name field, change DATAx to system.
  3. Check Protected. This prohibits the end user from entering data.
  4. Click the check mark Screen Painter check mark to accept the changes.
  5. Close the Field Attributes dialog box.

Paint screen parameters

In this procedure, you assign screen parameters to the BLDRCU screen, including an internal screen title to appear in all generated BLDRAPPL reports, a system message field to accept and display messages from the application, and a CICS transaction ID. When you run the application, the transaction ID identifies the screen to CICS.

Assign an internal screen title
  1. Double-click on a blank portion of the screen. The Screen Parameters dialog box appears.
  2. In the Title field, type Parts Update.
Assign the System Message field
  1. On the Screen Parameters dialog box tool bar, click EDITS. The Field Edit Messages and Attributes dialog box appears.
  2. From the Message Display Field drop-down list, select SYSTEM.
  3. Click OK. This returns you to the Screen Parameters dialog box.
Assign a transaction ID for the screen
  1. On the Screen Parameters dialog box tool bar, click CICS. The CICS Generation Parameters dialog box appears.
  2. In the Transaction ID field, type BLDU.
  3. Click OK. This returns you to the Screen Parameters dialog box.
  4. Click OK. This returns you to the Screen Painter.
Note: The CICS transaction IDs for the BLDRCA and BLDRCM screens have been set for you.

Align screen fields

In this section, you use the alignment features of the Screen Painter to clean up the appearance of the BLDRCU screen.

Center the title fields
  1. Using one of the methods presented in the Select multiple fields section of the Screen Painter Basics topic, select the AMB Demonstration System and Parts Update text fields.
  2. Click Arrange > Alignment. The Alignment dialog box appears.
  3. On the horizontal list, click Center.
  4. On the vertical list, click None.
  5. Click OK to make the alignment. The Screen Painter centers the screen title fields relative to the screen and each other.
Align the Function and Units text fields with the Part Number text field
  1. Using one of the methods presented in the Select multiple fields section of the Screen Painter Basics topic, select the Function, Part Number, and Units text fields.
  2. To set the Part Number field as the primary field, click on it. Its anchor blocks become solid.
  3. Click Arrange > Alignment. The Alignment dialog box appears.
  4. On the horizontal list, click Left.
  5. On the vertical list, click None.
  6. Click OK to make the alignment. AMB left-aligns the Function and Units fields with the Part Number field.
Align remaining fields
  1. Using the techniques you have learned in this tutorial and in Screen Painter Basics, continue to adjust fields on the screen until they appear as shown in the Completed Parts Update Screen figure.
  2. Click File > Save to save your work.
  3. Click the x icon in the upper right corner of the toolbar to close the Screen Painter.

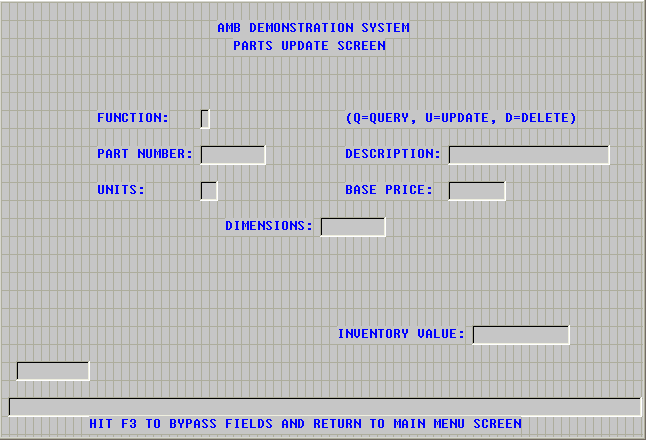

Figure 4. Completed Parts Update Screen
Completed Parts Update Screen
