Installation Steps

Attention: The installation is supplied in two formats: .exe and .msi. On the installation CD, the .exe is located in the top level folder, and the .msi is located in the msi folder. If you plan to install Xcentrisity Business Information Server, or start AcuServer or AcuConnect from the installer, you must run the installation with administrator privileges, from an account that is in the Administrator group.

If you install from the CD, it will automatically run the .exe version with administrator privileges. To run the .msi, you must run it from a command prompt that has administrator privileges. To run the .msi with administrator privileges, click Start, and in the Search programs and files field, type cmd.exe, then in the list displayed, right-click cmd.exe and select Run as administrator: this opens a command prompt with administrator privileges, where you can run the install by typing the full path name of the .msi file.

Follow these steps to install your products.

  1. Insert the product CD, or use the provided link to download the installation package from the Micro Focus website.

    If you are using the CD, it runs the .exe version automatically.

  2. If the .exe version does not start automatically, or you are using the downloaded installation package, do one of the following:
    • Navigate to the CD drive, then double-click the .exe.
    • Navigate to the location of the downloaded file, then double-click it. (See the above note if you are running the .msi version.)

    The installation starts.

  3. On the Welcome page, click Next.
  4. On the End-User License Agreement page, select I accept the terms in the License Agreement, then click Next.
  5. On the Select Installation Folder page, click Browse and select installation directories for 32-bit and 64-bit (if applicable) products. Alternatively, you can accept the default location(s), then click Next.

    Restriction: If you specify a mapped drive, it must map to a local directory; remote mapped drives are not supported.
  6. On the Product Selection page, select the required products, then click Next.

    You must have product codes and keys to activate each product; however, you can install all products now, and activate those products for which you do not have a license at a later date. (Be aware that if you attempt to use products for which you do not have a license, you may receive error messages indicating that no license file is available.)

    Note: Ensure you select Documentation on this page to install and access the product user guides.
  7. On the Installation Settings page, select one or more of the following, then click Next:
    Select To
    Install License Activator Install a copy of the License Activator
    Launch License Activator Launch the License Activator at the end of the installation process
    Start AcuServer Start AcuServer as a service
    Start AcuConnect Start AcuConnect as a service
    Note: Starting either AcuServer or AcuConnect as a service will only occur if you have run the .exe or .msi version of the installer with administrator privileges (see note above). If a previous version of either product is already running on its default port, an additional prompt is displayed, asking you if you want to shut down that service; you must answer Y if the new version of AcuServer or AcuConnect is to start - see Notes on AcuConnect and AcuServer Installation for more details.

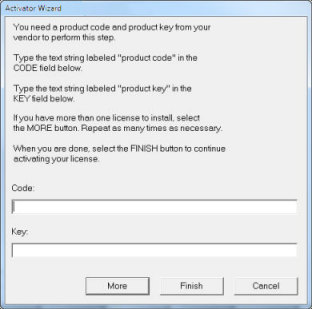

    If you selected Launch License Activator on the Installation Settings page, the Activator Wizard appears.

  8. Type your first product code and key in the appropriate fields.

    The License Activator is case-insensitive and displays only uppercase characters. It also ignores embedded spaces and separating characters. Product codes and keys do not contain the letters "O" or "I".

    CAUTION:
    If you have a license for both the Windows runtime (wrun32.exe) and an Alternate Terminal Manager (ATM) runtime (run32.exe) for the same machine, be aware that the Activator Utility creates a license file named wrun32.alc for each of them. To avoid a situation in which the Activator Utility overwrites the license file for the second runtime:
    • Make a backup copy of the Windows runtime license file prior to creating (and renaming) the ATM runtime license.
    • Create the ATM runtime license and rename it to match the executable (change wrun32.alc to run32.alc) before creating the Windows runtime license.
  9. If you have more than one code and key pair to enter, select More after typing the first code/key pair. Repeat this process until you have entered all code and key pairs, then click Finish.

    Each time you press More, the License Activator creates a separate license file for the product code and key you entered and returns you to the code and key entry screen.

  10. Click Finish on the Installation Complete page to complete the installation.
Note: If license activation was successful, but you get a message during product startup indicating that the license file cannot be found, the license file may not be in the correct directory. The License Activator determines where to place the license file based on entries in the Windows registry. If no registry entry is found, the license file is placed in the same directory as the License Activator executable file, which is the \AcuGT\bin sub-directory of the default installation directory. If this is not the location of the product's executable file, move the license file to the directory containing the corresponding executable file; for example, move wrun32.alc to the directory containing wrun32.exe.
