Connecting to the Gateway

When the Gateway service is up and running, navigate to the AcuToWeb start page using the syntax:

http://[server ip]:[configured port]

The default value is http://127.0.0.1:3000.

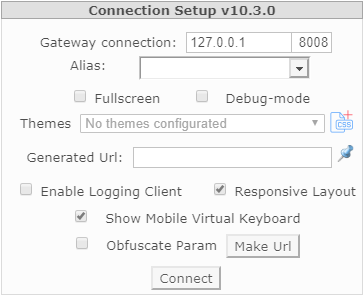

The Connection Setup dialog box appears, which confirms that the Gateway is running:



From this point, you can use the following options to create a URL that can be distributed to your end-users; they can paste the URL into their browsers to run the application that the alias refers to:

Option Description
Gateway connection Specifies the host name or IP address, and port number of the AcuToWeb Gateway. These values are taken from the gateway.toml configuration file.
Alias Specifies the alias of the AcuConnect to be executed. By default, this option is empty, but you can populate a list of values by adding them to the fillCombo.js file. By default, this file is located in the AcuToWeb\Web\js sub-directory of your installation path, but you can use the PATH_FILL_COMBO option in gateway.toml to use a fillCombo.js file at another location.

The following excerpt adds aliases for the Calculator and Tour applications:

[
{"type": "category", "text": "Main Applications"},
{"type": "elem", "text": "Calculator", "value": "calc-alias"},
{"type": "elem", "text": "Tour", "value": "tour-alias"}
]

You can also type an alias name into the field, then click Make URL, which will generate a URL that you can distribute to customers, which will allow them to paste into their browser and connect to the gateway directly.

Fullscreen When selected, it allows you to toggle Full-screen mode on the browser.
Notes:
  • If your program contains multiple windows, you can use Shift + Tab to switch between them.
  • When checked, the Open in new window option opens a new tab.
Debug-mode When selected, the ACUCOBOL-GT debugger immediately starts when connecting to the gateway.
Themes Select a theme (.css file) for the application to use in the browser. This option is only available if you have added one or more themes to the service using the CUSTOMIZE_CSS option in the configuration file.
Generated Url Displays the URL required to connect to the gateway.
Enable Logging Client When selected, logging is enabled whilst the application runs. An additional (Console) icon is added to the top-right corner of the interface to indicate that logging is enabled. Click the icon to display the Logging Console; see Using the Logging Console for more information.
Responsive Layout When selected, this option disables the zoom in/out functionality. To make your program truly responsive to a variety of screen sizes and viewports, use CSS and ATW-CSS-CLASS/ATW-CSS-ID control properties in addition to enabling the Responsive Layout option.
Show Mobile Virtual Keyboard Displays a mobile virtual keyboard when connecting through the gateway on a mobile device, to help navigate the application. This option is enabled by default, but will not have an effect if not connecting on a mobile device.
Obfuscate Param Encodes the URL parameters using the Base64 encoding scheme, so that when a URL is distributed, the specific details are not readable (without first being decoded). Click Make Url to generate an obfuscated URL.
Connect Connects to the gateway using the parameters provided.
