11.1 Deployment for Migration to Oracle Cloud Infrastructure

You must manually install a PlateSpin Migrate server with a public IP address on a virtual host on the Oracle Cloud Infrastructure. See Section 11.4, Installing a PlateSpin Migrate Server in Oracle Cloud.

Figure 8-1 shows the location of various components in your semi-automated migration environment and the communications between them. See Section 11.2.2, Prerequisites for Using a Migrate Server on Oracle Cloud.

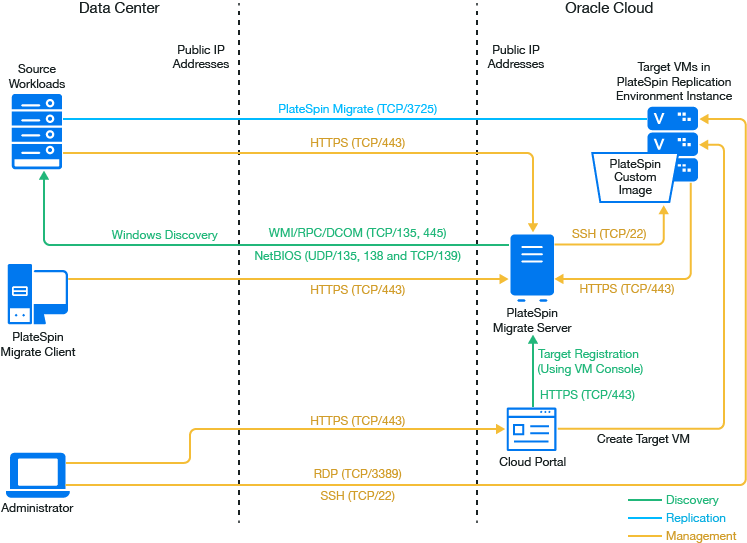

Figure 11-1 Cloud-Based Migrate Server for Semi-Automated Migration to Oracle Cloud
