Specifying Relationships between Element Types and Properties

Properties and their relationships to Element Types need to be specified. In the Properties folder of the AWM Model:

  1. Hold down Ctrl while you click the following properties:
    • TUTORIAL_PROP_ELE_CreationDate
    • TUTORIAL_PROP_ELE_TicketNumber
    • TUTORIAL_PROP_ELE_Raiser
    • TUTORIAL_PROP_ELE_Description
    • TUTORIAL_PROP_ELE_Status
    • TUTORIAL_PROP_ELE_Priority
  2. Drag the selection and drop it on the TUTORIAL_ELE_Issue element type.

    This opens the Create Relationships dialog box.

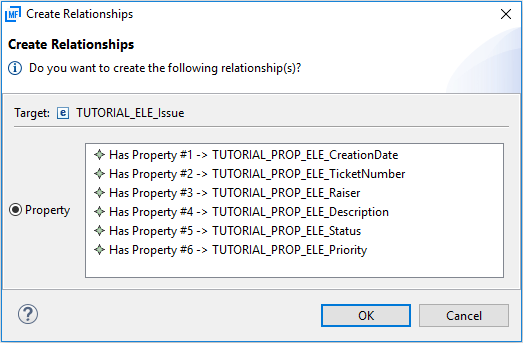

    The Create Relationships dialog box for TUTORIAL_ELE_Issue

  3. Click OK.

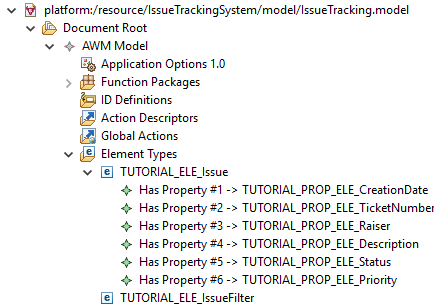

    Your TUTORIAL_ELE_Issue element type should now look like:


    TUTORIAL_ELE_Issue Has Property
  4. Select TUTORIAL_PROP_STATIC_IssueFilter then hold down Ctrl while you select TUTORIAL_PROP_ELE_EleType.
  5. Drag the selection and drop it on the TUTORIAL_ELE_IssueFilter element type.

    This opens the Create Releationships dialog box.

  6. Click OK.
  7. Select TUTORIAL_PROP_ELE_Priority then hold down Ctrl while you select TUTORIAL_PROP_ELE_EleType.
  8. Drag the selection and drop it on the TUTORIAL_ELE_PriorityFilter element type.

    This opens the Create Relationships dialog box.

  9. Click OK.
  10. Click File > Save .
