Execution results for example 7

COBOL display

The following sections display the output of the COBOL program that is run and the XML document that is generated.

Note: Pressing a key will terminate the program.
Running the program (run example07) produces the following display:
 Example-07 - Illustrate TEST-WELLFORMED FILE
& VALIDATE FILE
 address07.xml exported by XML EXPORT FILE
 Name: Specialty Cowboy Boots Company
Address-1: 1050 North San Antonio Street
Address-2: Suite 200
Address-3: Austin TX78701
Country: United States of America
Time-Stamp: 2013/07/01 20:02:32.99
 address07.xml checked by XML TEST WELLFORMED-FILE
 address07.xml validated by XML VALIDATE FILE
 address07.xml imported by XML IMPORT FILE
 Name: Specialty Cowboy Boots Company
Address-1: 1050 North San Antonio Street
Address-2: Suite 200
Address-3: Austin TX78701
Country: United States of America
Time-Stamp: 2013/07/01 20:02:32.99
 You may inspect 'address07.xml'
 Status: +0000
Press a key to terminate:

Microsoft Internet Explorer may be used to view the generated XML document address07.xml. The content of this document should appear as follows. (Note that Internet Explorer will differentiate among the various syntactical elements of XML by displaying them in different colors.)

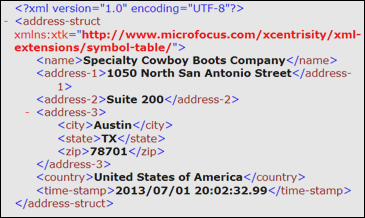

Content of generated XML document address07.xml
