The enhanced ACCEPT/DISPLAY syntax (Adis) is a run-time support module which is provided for Screen Section and enhanced ACCEPT/DISPLAY syntax.

Note: Micro Focus recommends that the enhanced ACCEPT/DISPLAY syntax (Adis) is only used with existing applications and should not be used for new applications.

Adis can be configured to an application's requirements using its configuration utility Adiscf. Alternatively, calls can be made from the COBOL application to Adis to configure it at run time; for example, to enable function keys.

The enhanced ACCEPT/DISPLAY syntax provides functionality beyond the standard ANSI ACCEPT syntax.

The following table represents those features of Adis over and above those of the standard ANSI ACCEPT and DISPLAY syntax:

Syntax type Features
  • Input data item
  • Accept day, date, time into data item
  • Output literals
  • Output contents of data items
  • Specify screen position and screen attributes
  • Accept and display data from and into:
    • Elementary data items in individual fields
    • Group items in multiple fields screen

      For multiple-field ACCEPT operations, FILLER describes the number of character positions to skip over to the next field. In a DISPLAY operation, FILLER defines the number of spaces between literals. All areas defined as FILLER are unaffected by the ACCEPT or DISPLAY operation.

    • Screen Section items
  • Configure keyboard keys

You can also set up the keys on the keyboard so that you can use them during the execution of an ACCEPT statement.

Adis consists of the following modules:

Module Description
adis The main support module
adisinit The initialization module, used only when the enhanced ACCEPT/DISPLAY syntax is first loaded
adiskey The keyboard-handling module
adisdyna The enhanced ACCEPT/DISPLAY syntax dynamic attributes module.

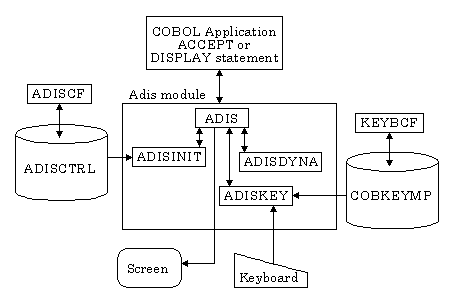

They interact as shown in the diagram below.
